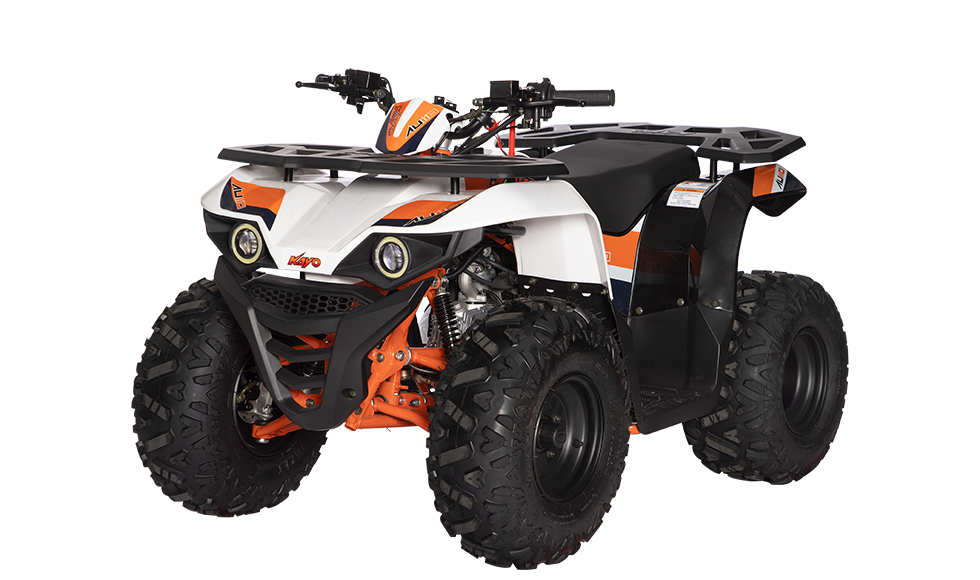

AU110 Overview

Color Options:

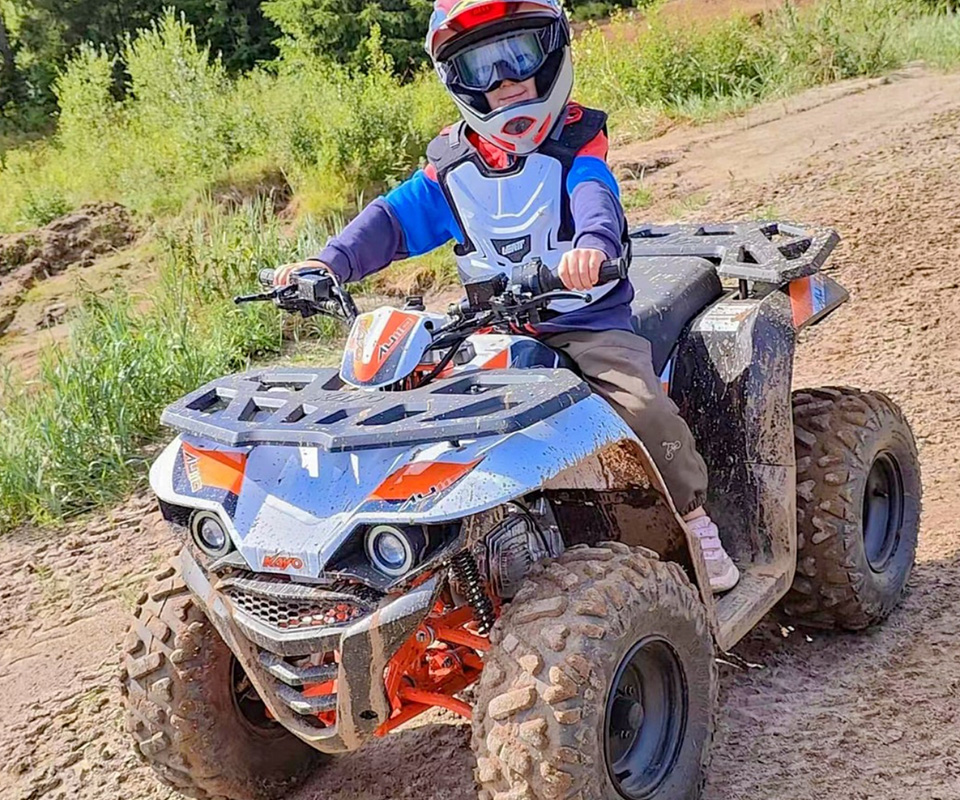

Kids deserve an ATV that fits their abilities, and the AU110 does just that.

 107.0cc 4-Stroke Air Cooled Engine  Automatic Transmission with R-N-F  Adjustable Rear Suspension 4.5L Fuel Tank

Power

Ready to Help and Play

Build confidence and contribute to light off-road tasks in the right-sized ATV with a Fully Automatic Transmission.

Off-Road Ability

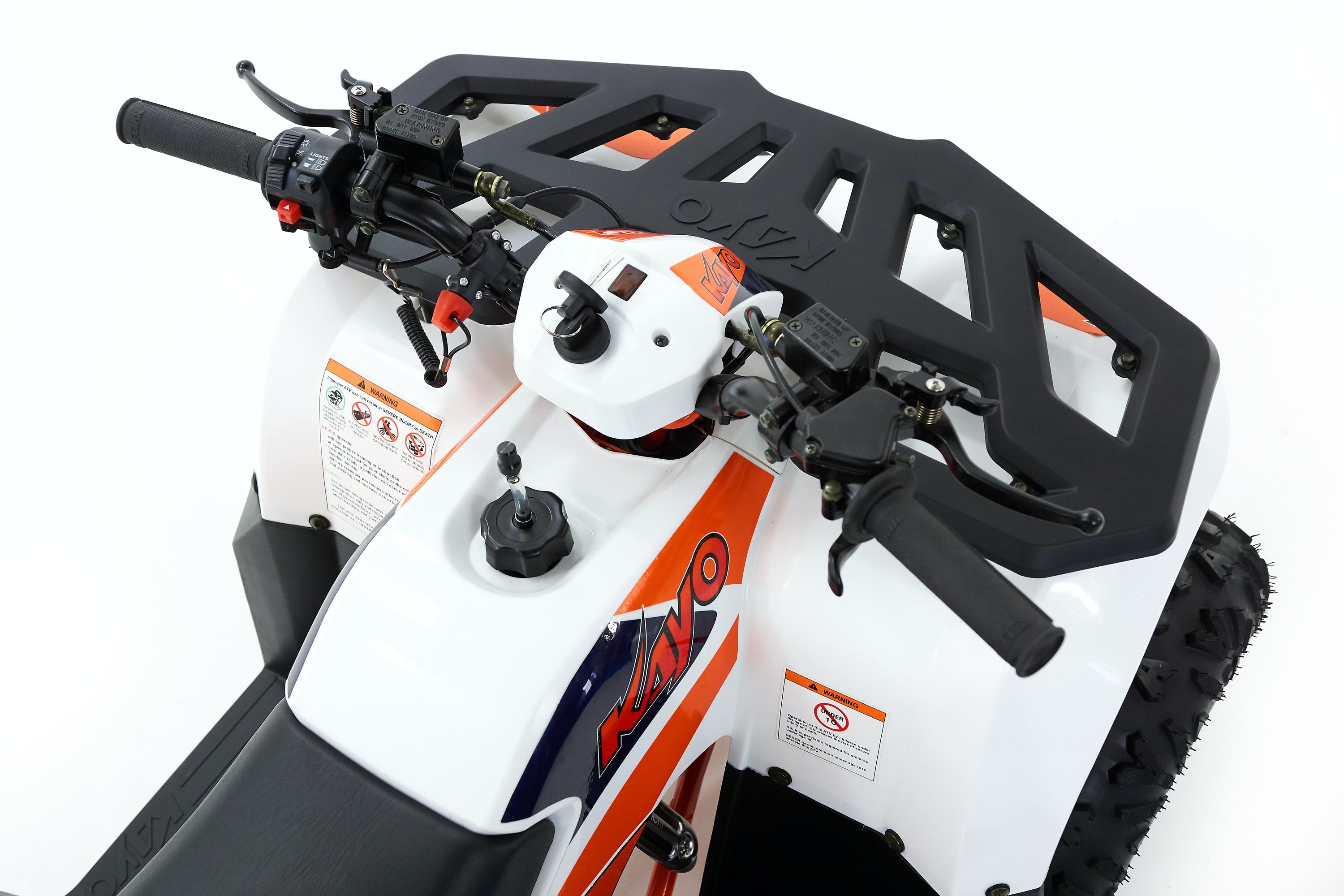

Straightforward Control

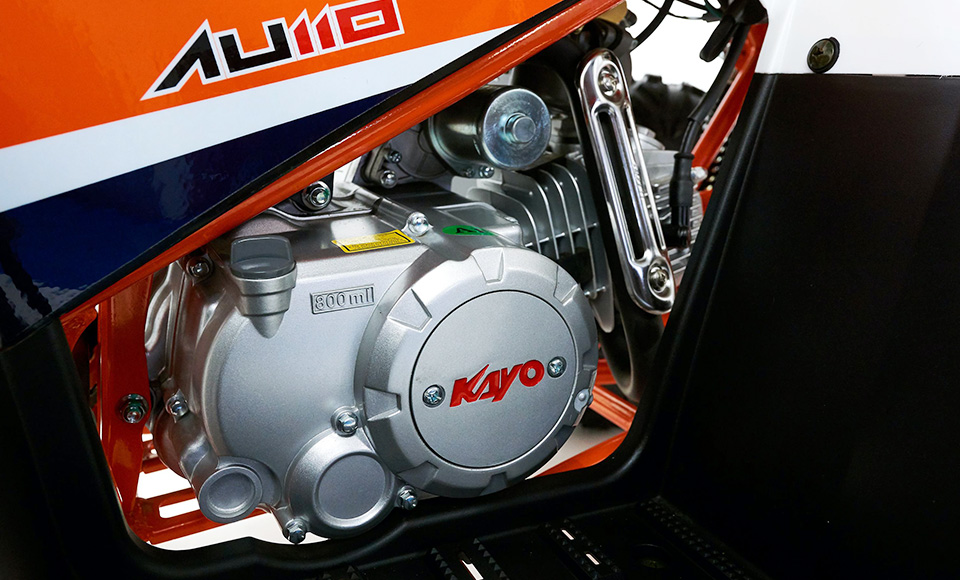

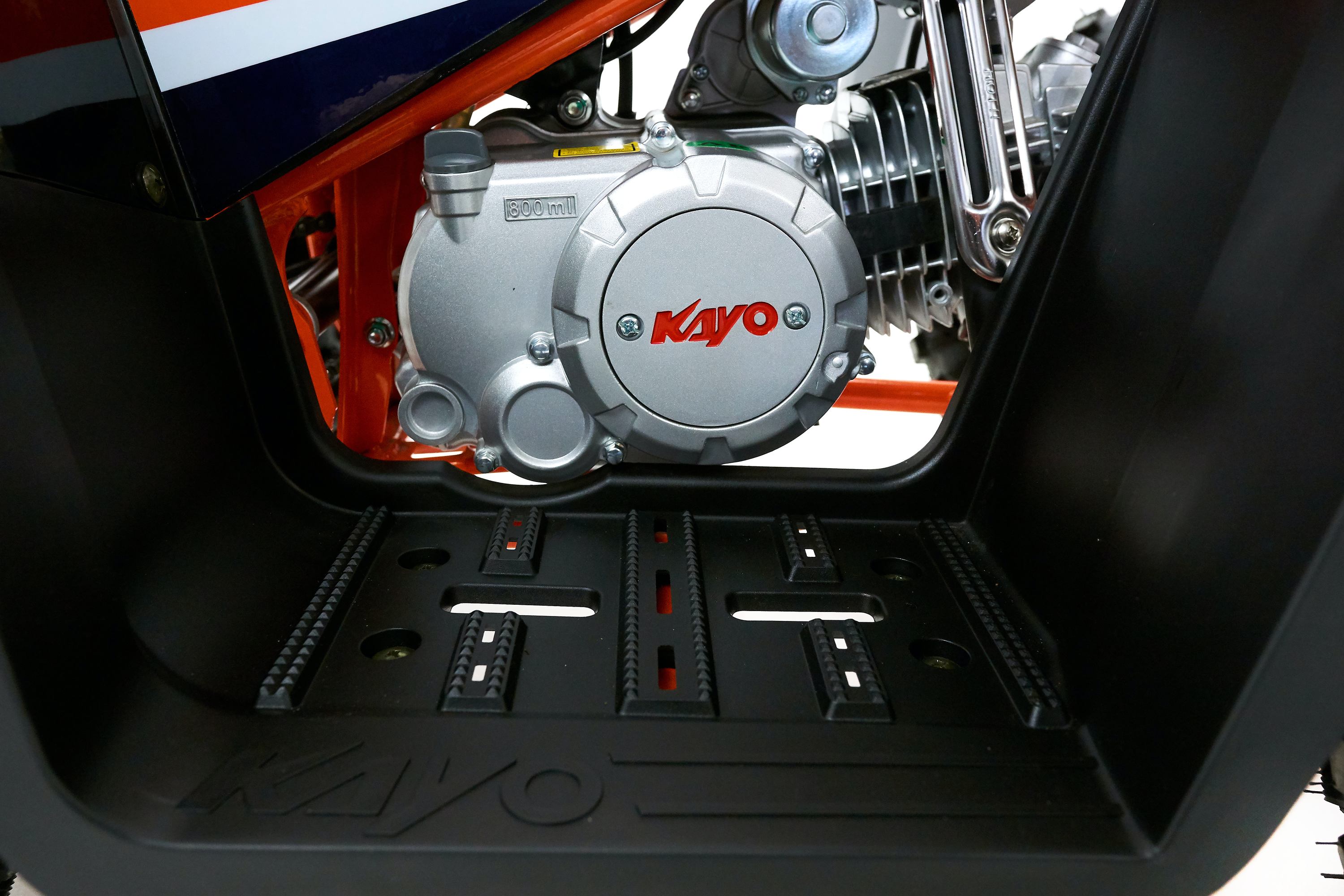

The switch on the easy electric start and ride with a dependable 4-Stroke, Air Cooled Engine all day.

Performance

Reliable Adaptability

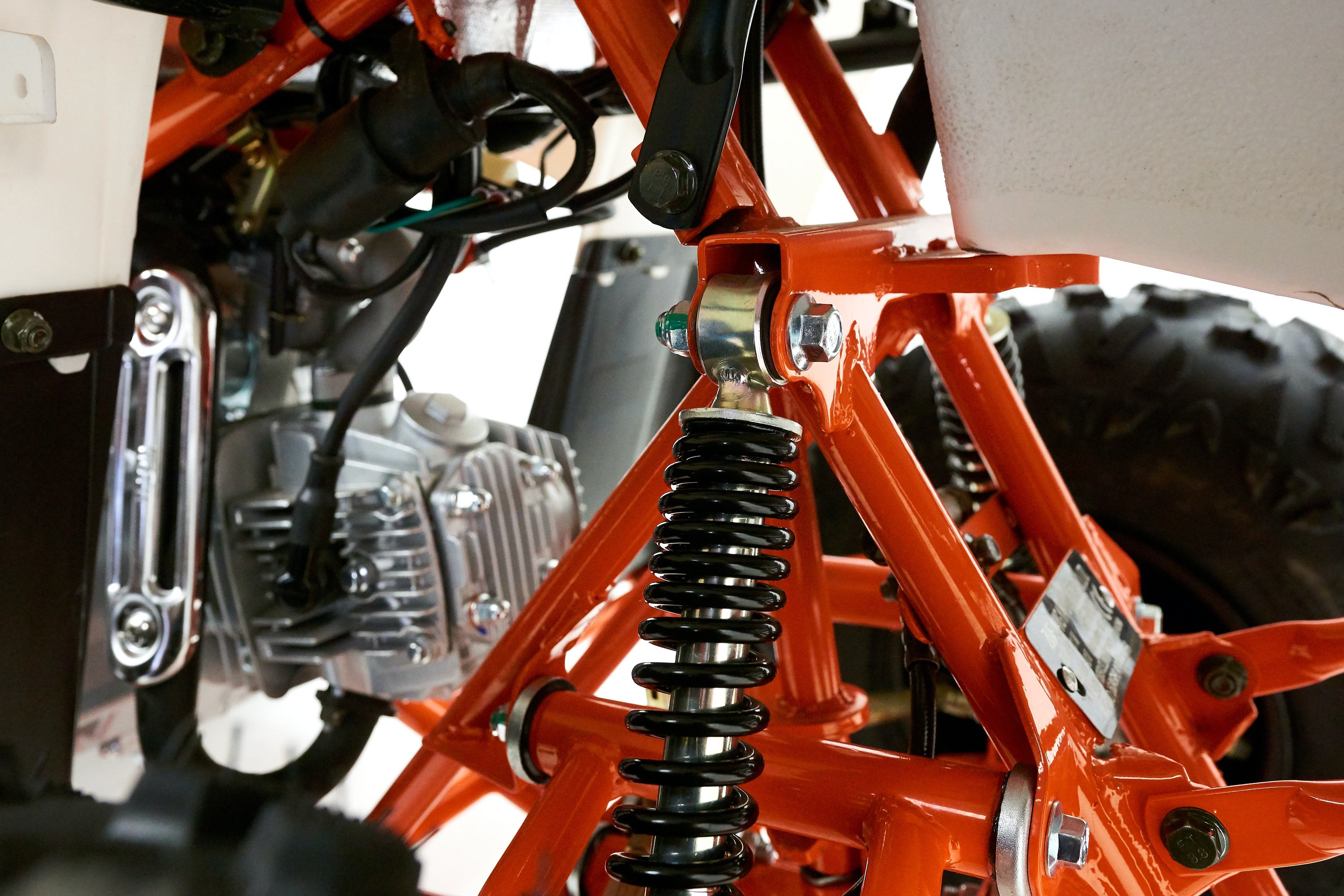

Get where you need to go with rugged suspension, responsive Hydraulic Disc Brakes, and large rugged off-road tires.

Learn what's possible and master the fundamentals of ATV riding with the AU110.

  • Power
    • Engine 4-Stroke, SOHC, Air Cooled
    • Displacement 107.0 cc
    • Bore x Stroke 52.4 x 49.5 mm
    • Compression Ratio 9.0:1
    • Fuel System Carburetor
    • Maximum Power 5.1 kw @ 8000 rpm
    • Maximum Torque 7.2 N⋅ m @ 5000 rpm
    • Ignition CDI
    • Starting Method Electric
    • Transmission Automatic with R-N-F
    • Final Drive 2WD, Chain
  • Performance
    • Front Suspension 265 mm Non-Adjustable
    • Rear Suspension 265 mm Adjustable
    • Tires F/8" R/8"
    • Front Brakes Hydraulic Disc Brake
    • Rear Brakes Hydraulic Disc Brake
  • Dimensions
    • Length x Width x Height 1430 x 860 x 890 mm
    • Seat Height 665 mm
    • Ground Clearance 115 mm
    • Wheelbase 910 mm
    • Dry Weight 98.0 kg
    • Fuel Capacity 4.5 L

Distributor & Dealer

Contact a Sales Team Representative for More Information

  • Homologation

    EPA 49 States/ CE

  • Packing Size

    1460 x 835 x 610 mm

  • Quantity in 20' GP

    27 Units

  • Quantity in 40' HQ

    88 Units
