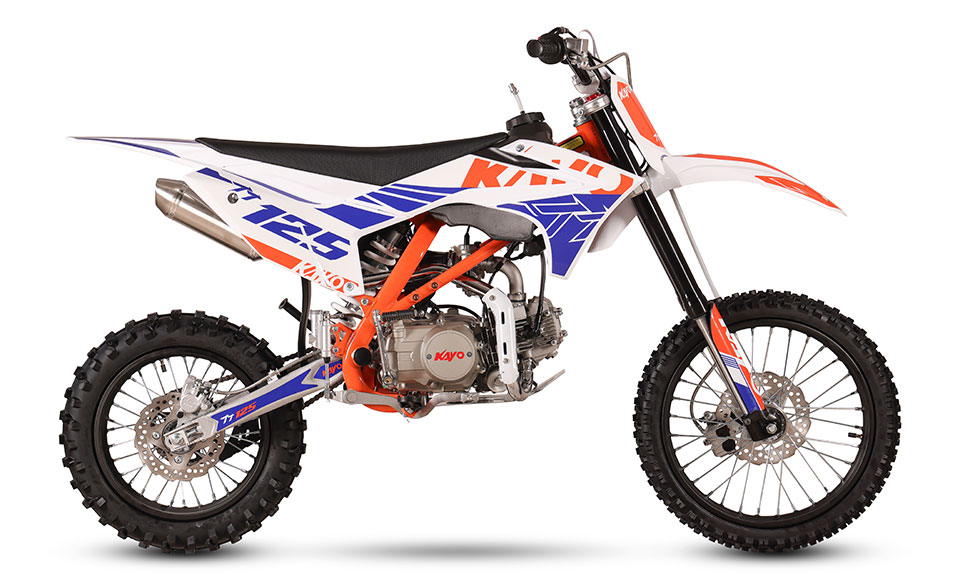

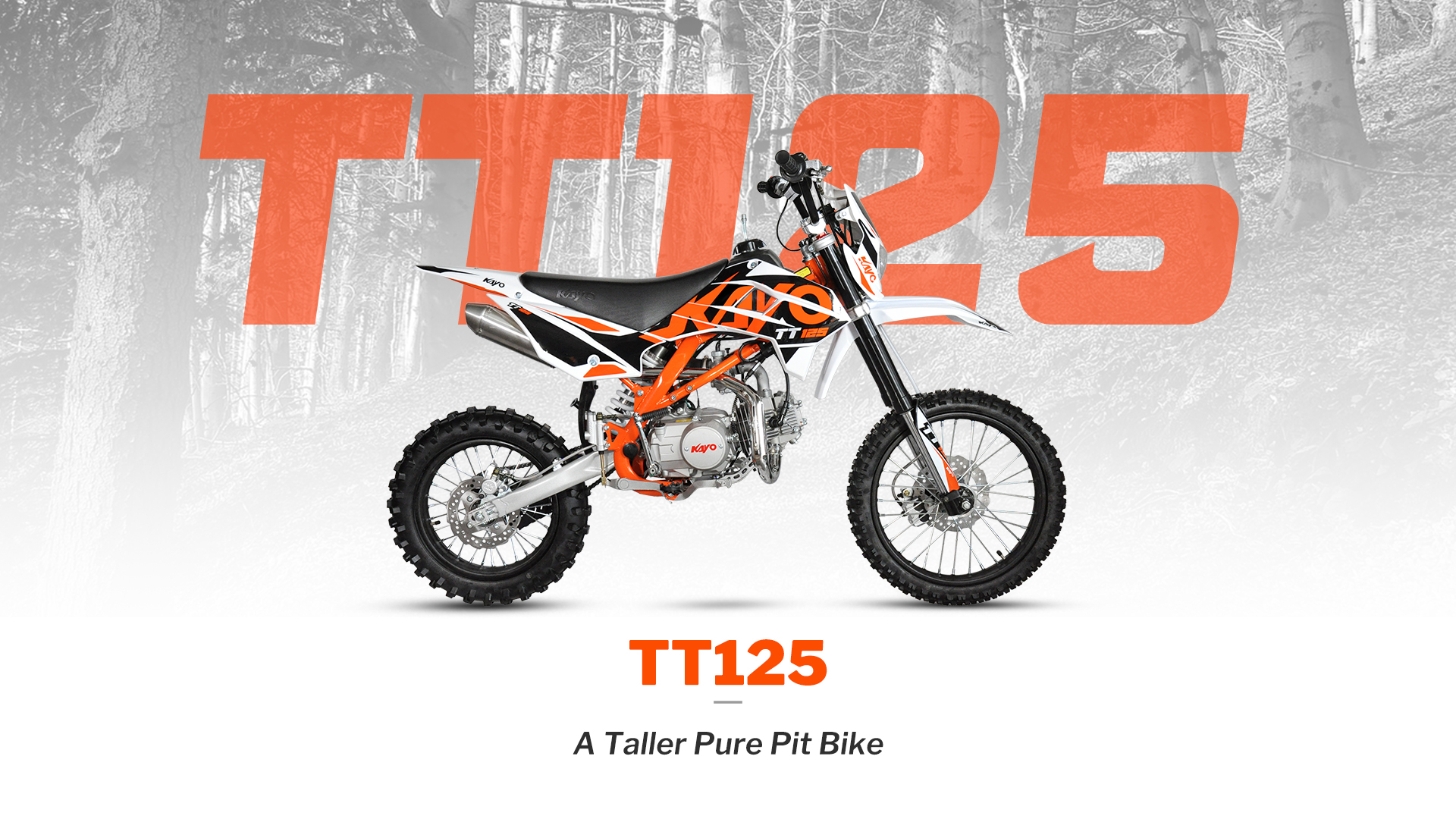

TT125 - Pit Bikes

TT125 Overview

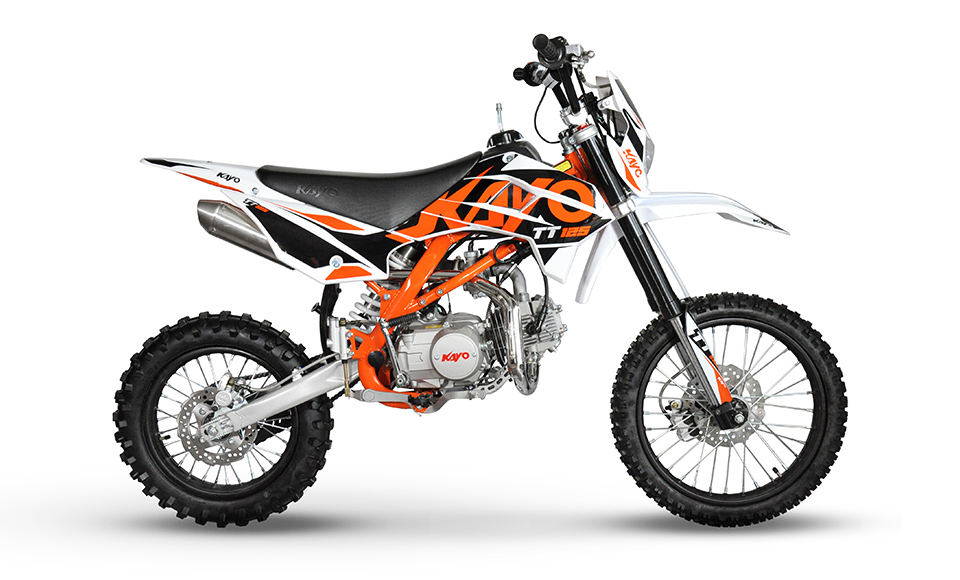

Color Options:

A great next pit bike for those still growing into their abilities. Ride what fits right with the taller TT125.

119.6cc 4-Stroke Engine Manual Four Speed Transmission with N-1-2-3-4 Kick Start Engine 5.5L Fuel Tank

Design

A Bike That Fits

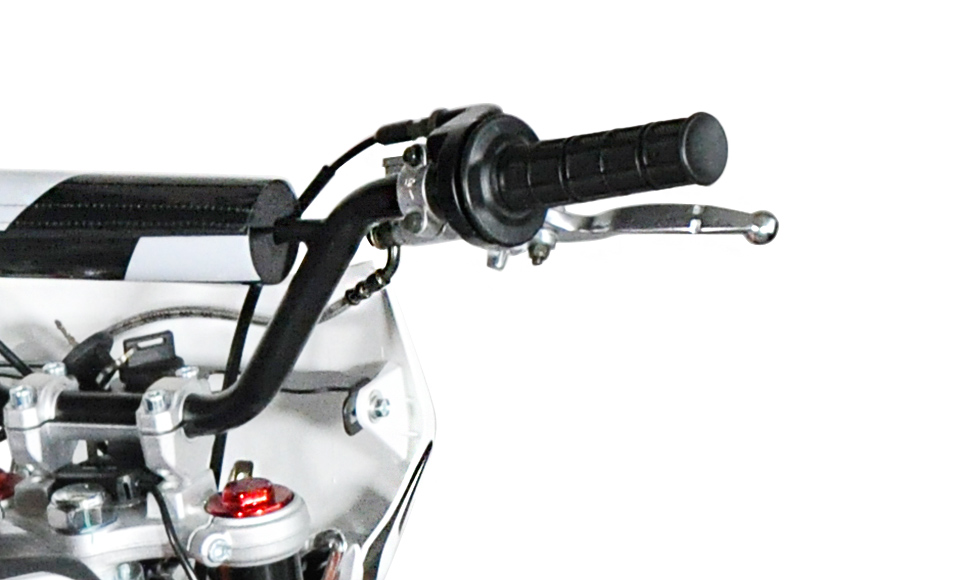

Young riders of all heights should be able to grow into their abilities. Sit upright and ride tall with the TT125's high seating position and ergonomic handlebars.

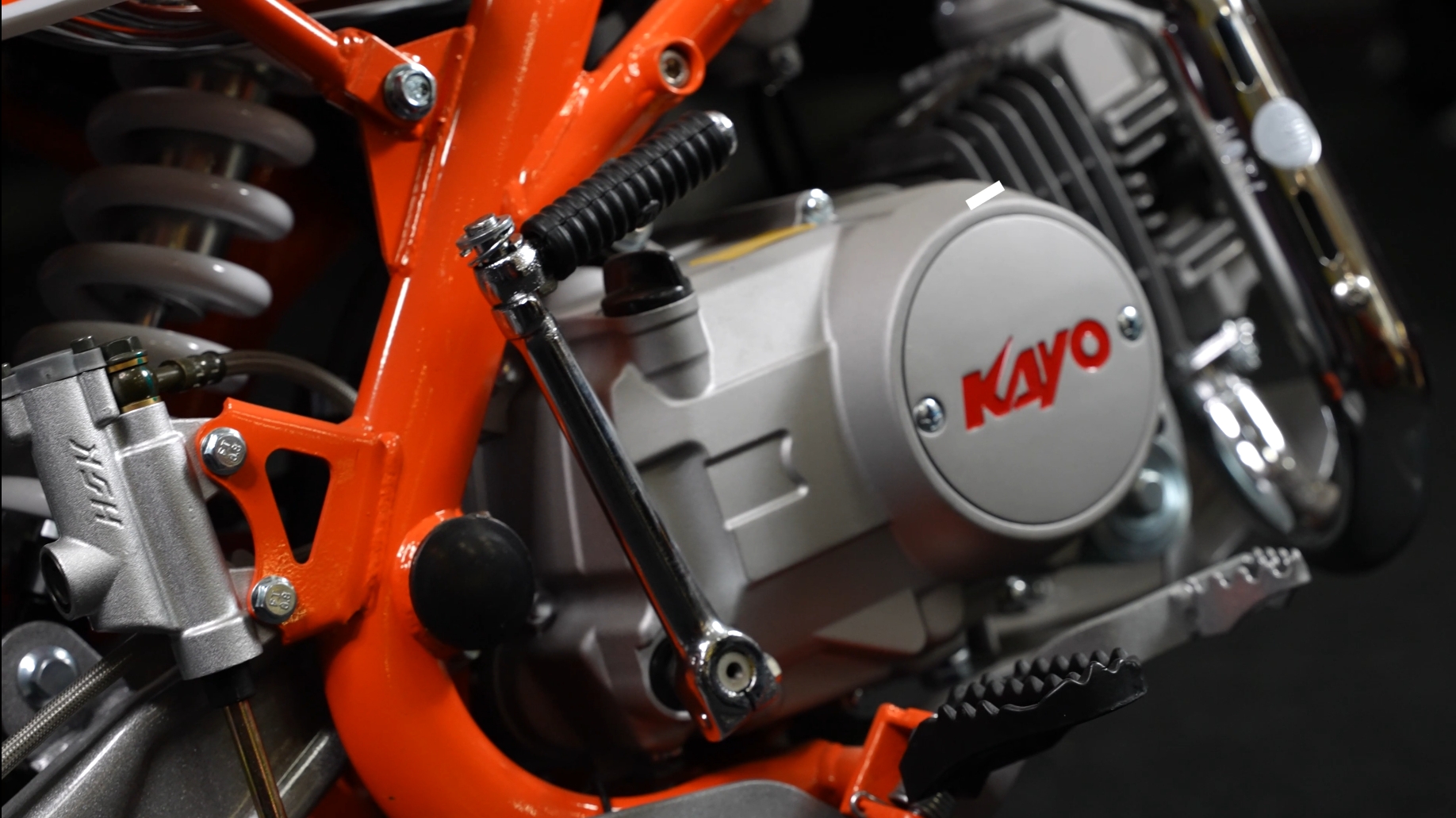

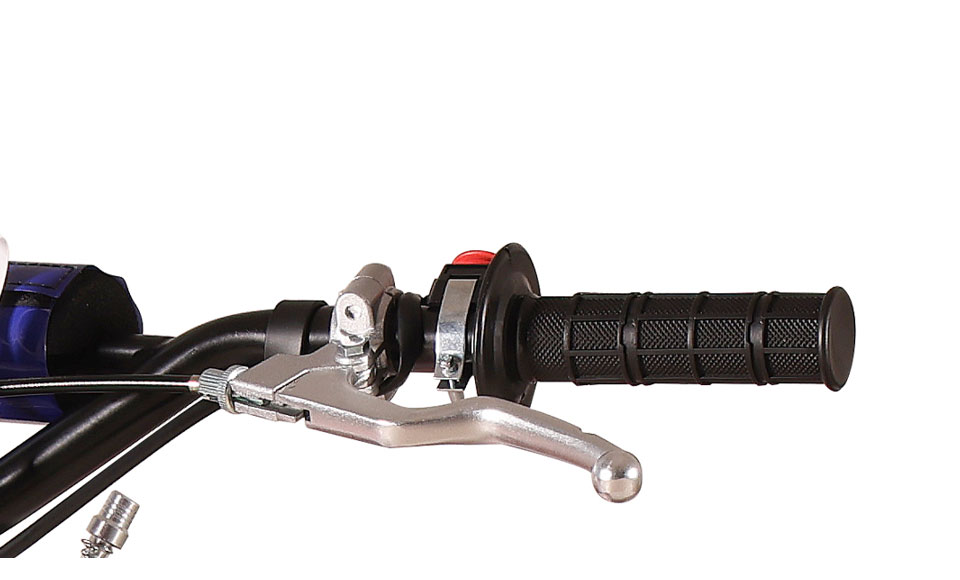

Power

Managed Power

Ease out the clutch on this Manual Four Speed transmission with optimized power for advancing riders who have outgrown their entry-level pit bike.

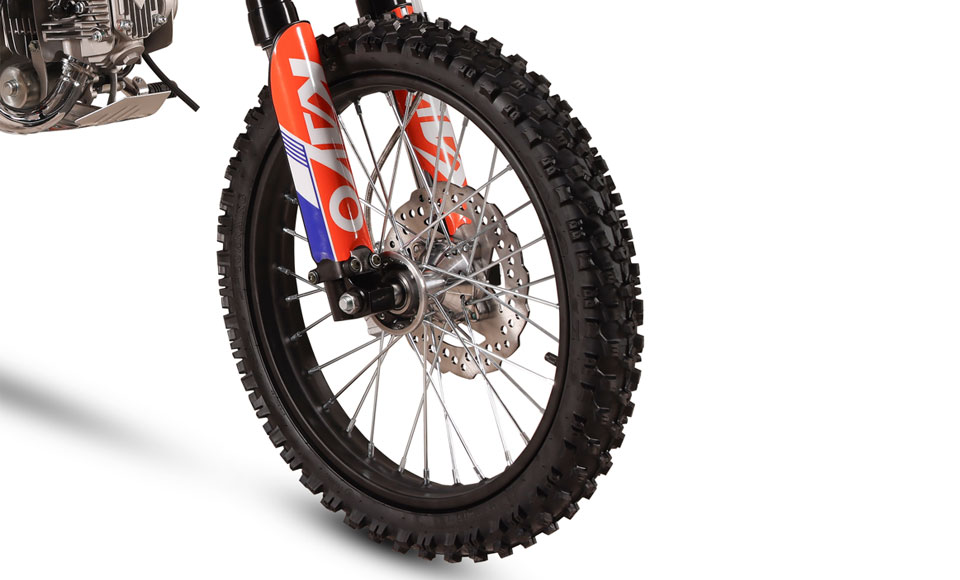

Performance

Embrace the Off-Road

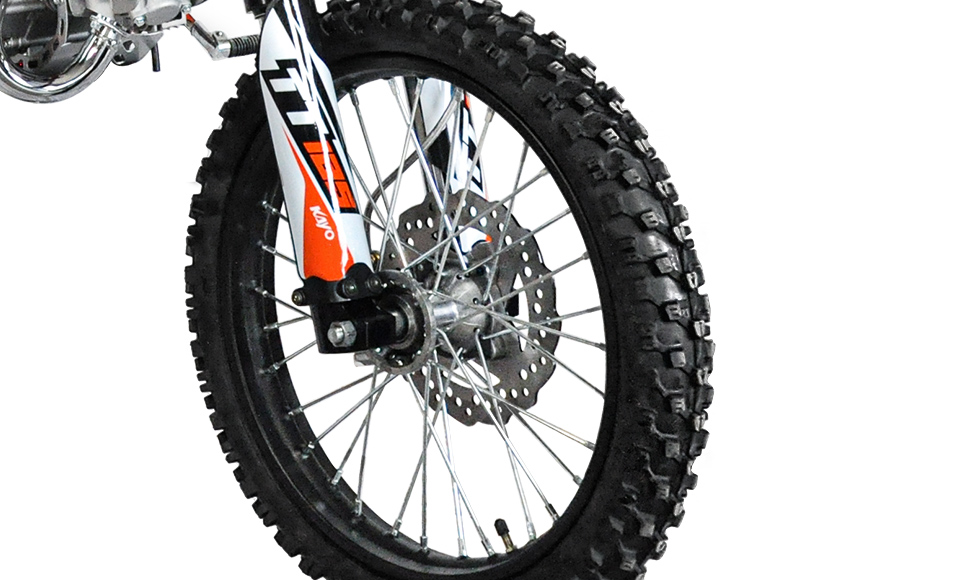

Shred up some dirt and make new paths with precision from the TT125's lightweight frame and deep tread tires.

Power
- Engine 4-Stroke, SOHC, Air Cooled
- Displacement 119.6 cc
- Bore x Stroke 52.4 x 55.5 mm
- Compression Ratio 9.3:1
- Fuel System Carburetor
- Maximum Power 5.6 kw @ 8000 rpm
- Maximum Torque 8.5 N⋅ m @ 5000 rpm
- Ignition CDI
- Starting Method Kick Start
- Transmission Manual Four Speed with N-1-2-3-4
- Final Drive Chain
Performance
- Front Suspension 735 mm Non-Adjustable
- Rear Suspension 360 mm Non-Adjustable
- Tires F/17" R/14"
- Front Brakes Hydraulic Brake
- Rear Brakes Hydraulic Brake
Dimensions
- Length x Width x Height 1780 x 750 x 1120 mm
- Seat Height 855 mm
- Ground Clearance 290 mm
- Wheelbase 1220 mm
- Dry Weight 72.0 kg
- Fuel Capacity 5.5 L

Distributor & Dealer

Contact a Sales Team Representative for More Information

Homologation

EPA 49 States/ CE
Packing Size

1560 x 380 x 735 mm
Quantity in 20' GP

63 Units
Quantity in 40' HQ

153 Units
