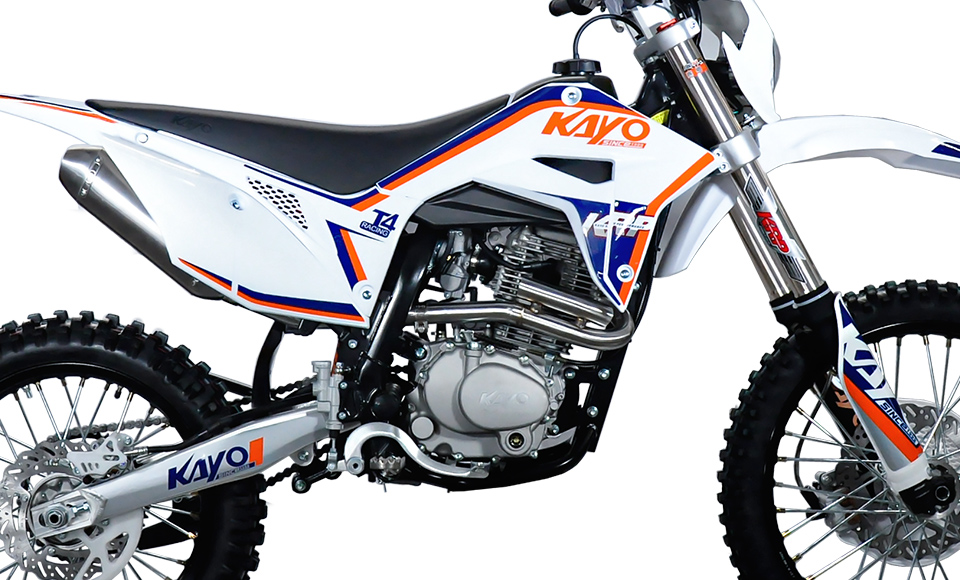

T4 - Dirt Bikes - KAYOMOTO

T4 Overview

Color Options:

The T4 is one of our longest produced dirt bikes and has a storied CMX Championship history. See why this dirt bike has been popular for so many years.

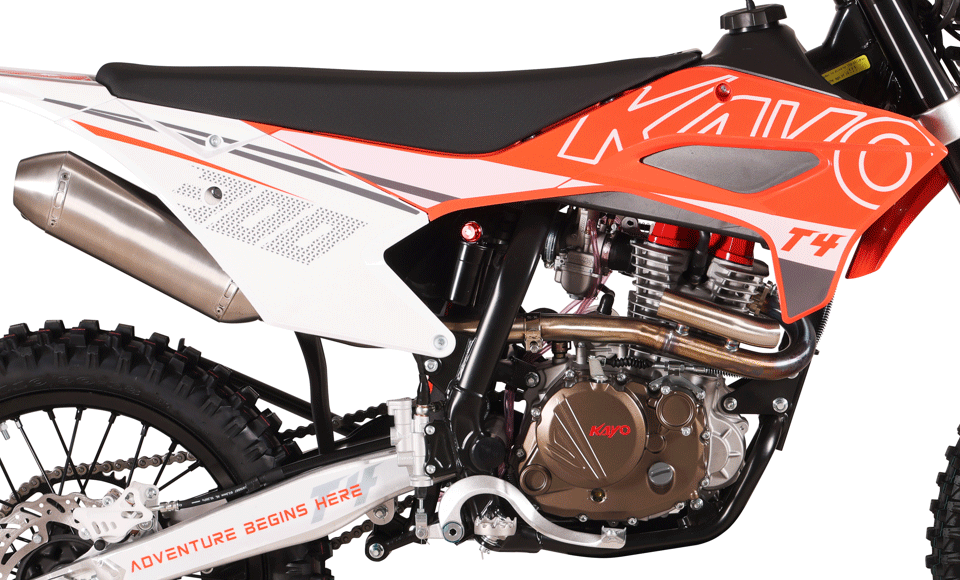

285.8cc 4-Stroke Engine Manual Six Speed Transmission with 1-N-2-3-4-5-6 High Quality Aluminum Parts

Power

A Ride that Shreds

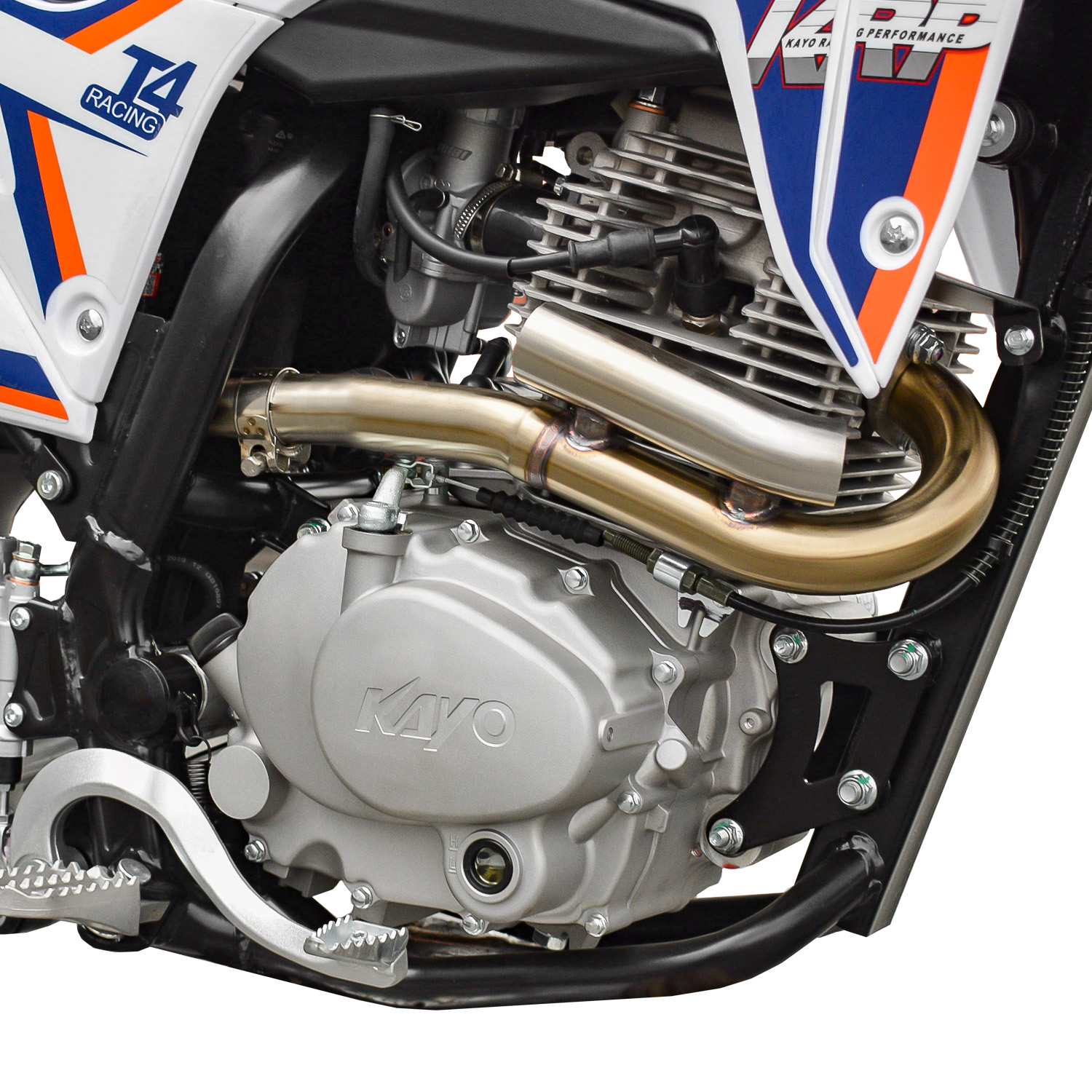

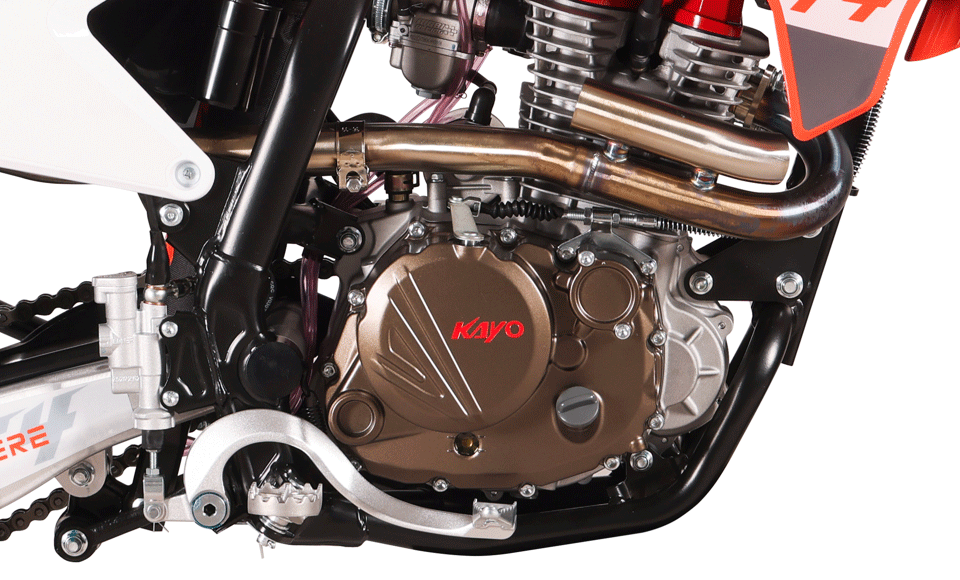

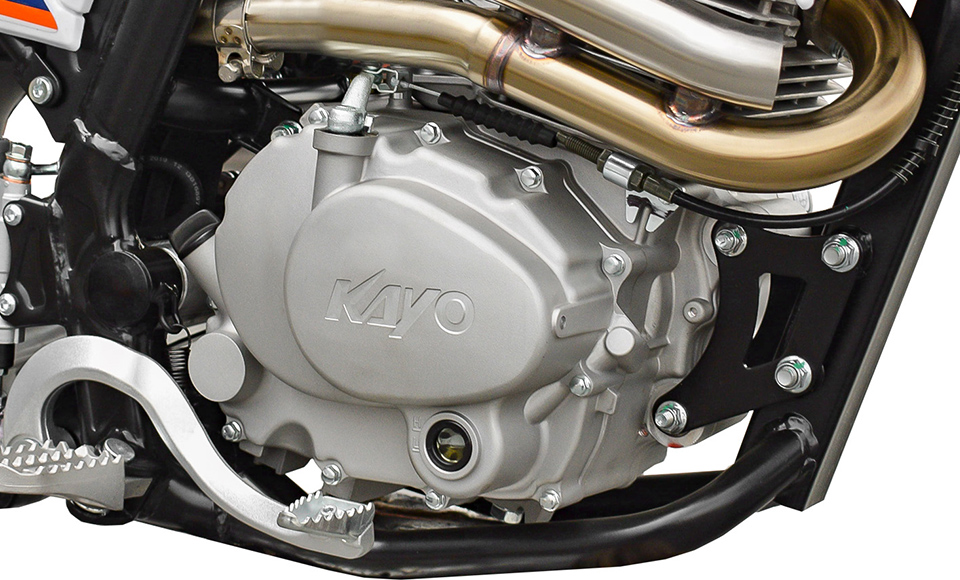

Tear up the ruts, jump over obstacles, and conquer the forest with a high torque, reliable 4-Stroke 285.8cc Engine made for aspiring professionals.

Tune your dirt bike to what you need with the Five Speed Transmission and racing carburetor.

Performance

Essential Handling

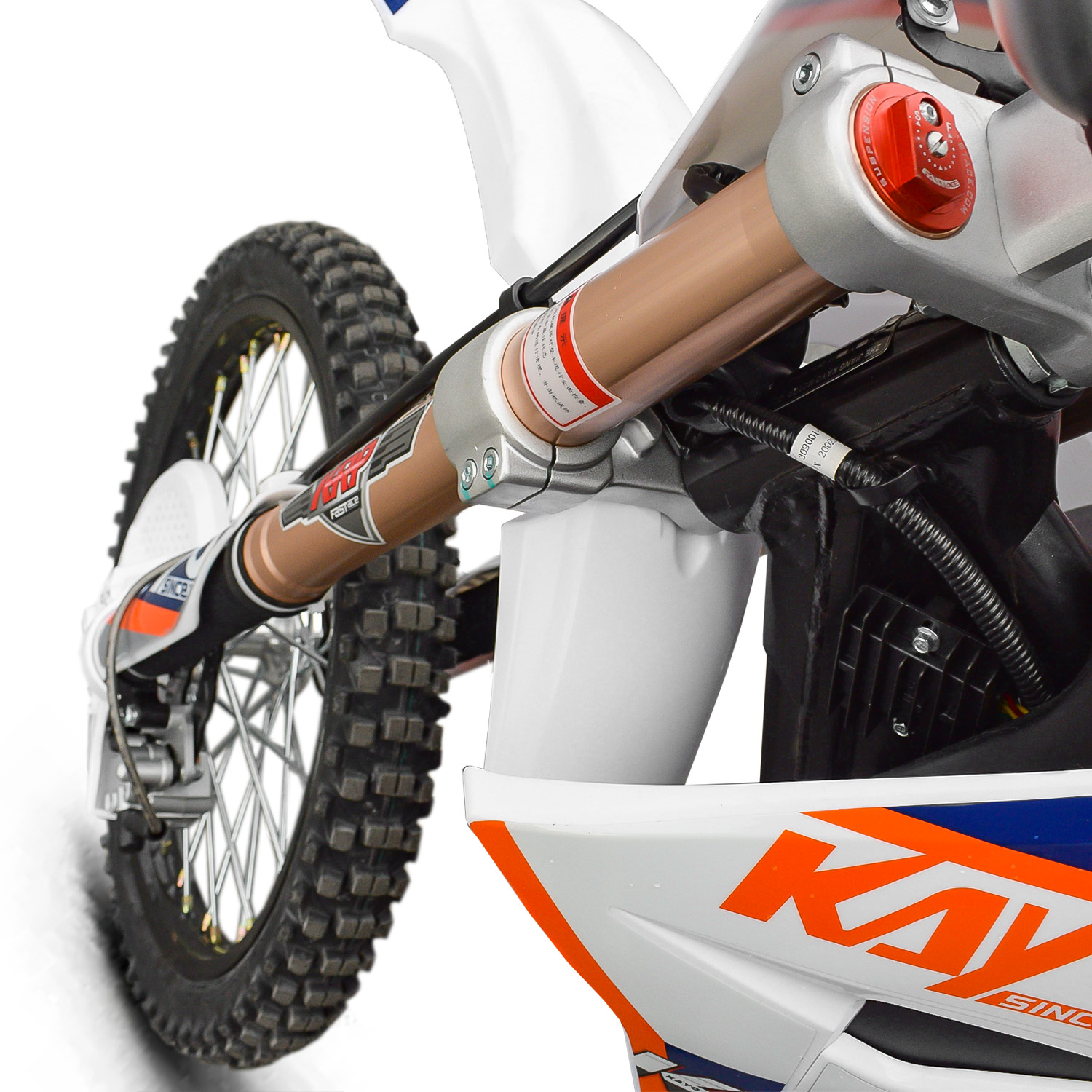

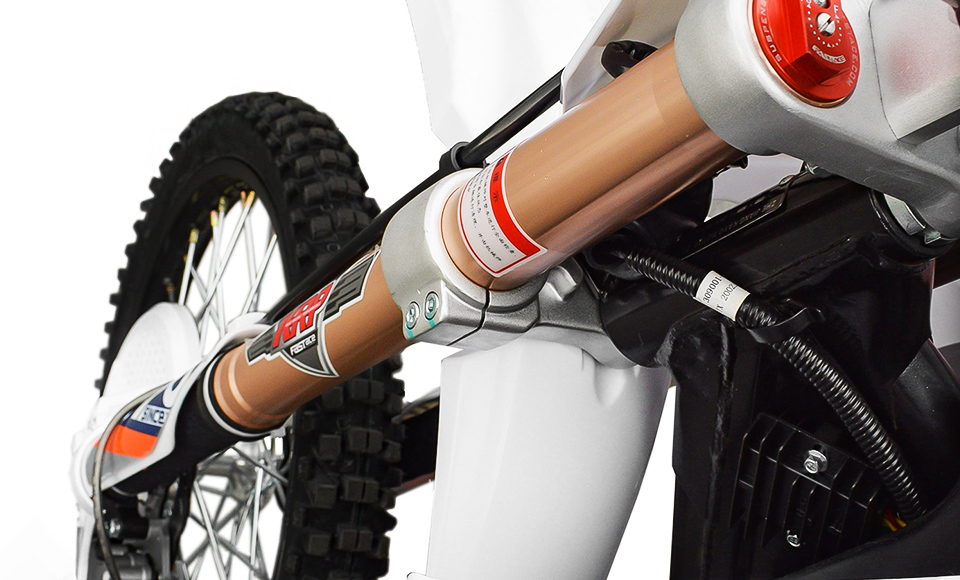

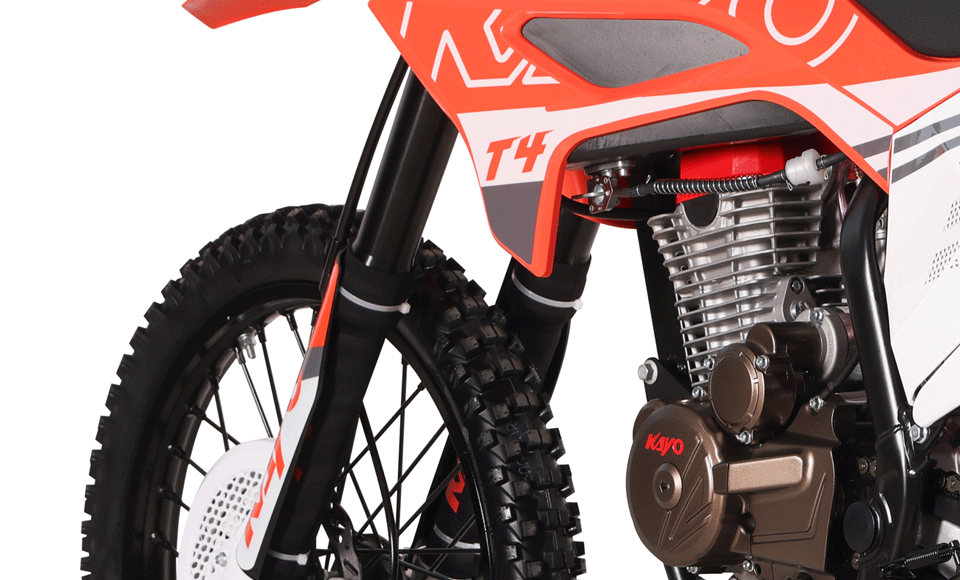

Beat your personal record with the dynamic performance of the fuly adjustable telescopic inverted front fork and rear suspension.

Adapt accordingly to what's on the trail ahead with the large diameter, high quality Hydraulic Disc Brakes.

Off-Road Ability

All Day Riding

Hold a firm grip over every rock, log, and unpaved path with the deep tread off-road tires. The T4's optimized weight was designed to help you go where others haven't gone before.

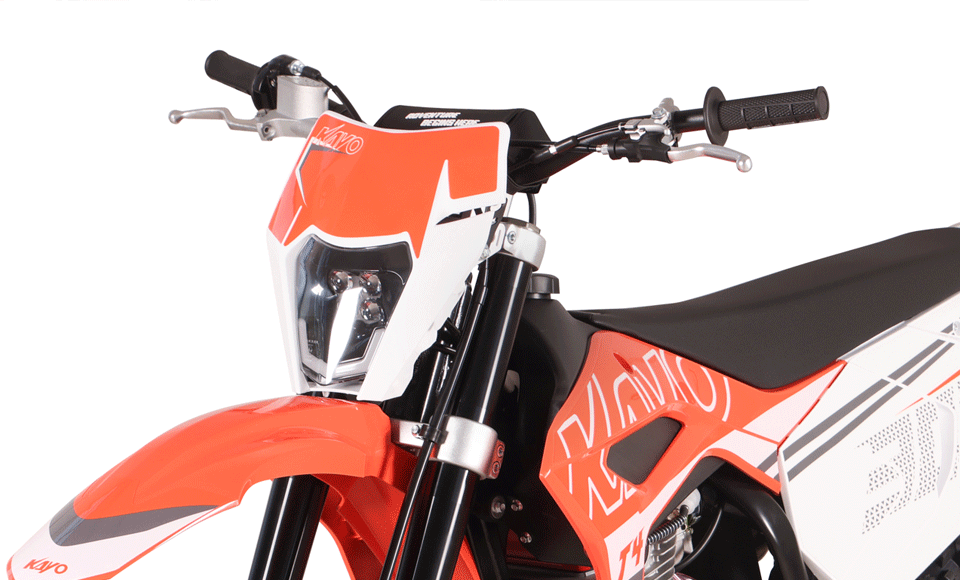

Design

Look the Part

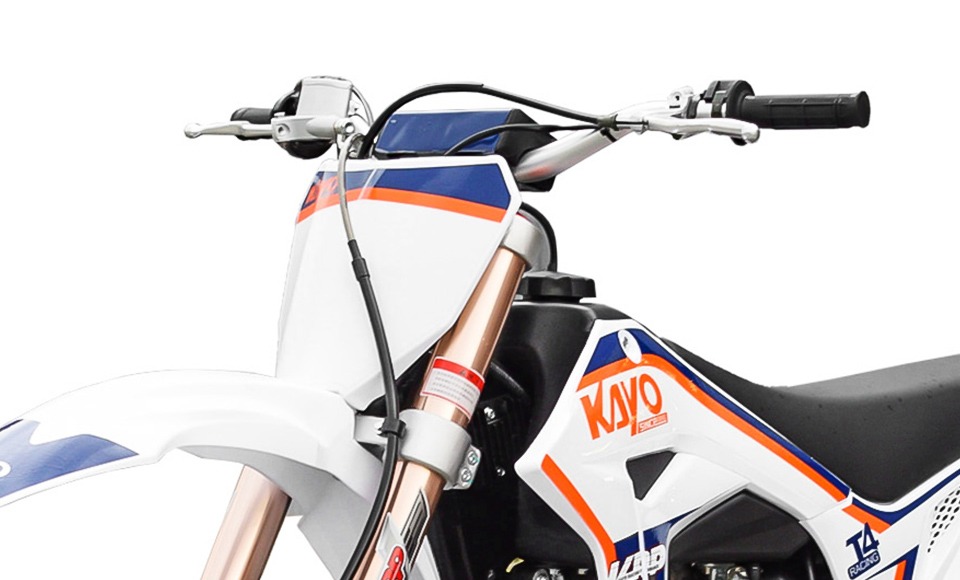

Ride tall with a frame that impressively contains and protects a l the internal components from the obstacles of your journey.

Power
- Engine 4-Stroke, SOHC, Air Cooled
- Displacement 285.8 cc
- Bore x Stroke 76× 63 mm
- Compression Ratio 9.02:1
- Fuel System Carburetor
- Maximum Power 18 kw @ 8000 rpm
- Maximum Torque 23.5 N⋅ m @ 6000 rpm
- Ignition CDI
- Starting Method Electric
- Transmission Manual Six Speed with 1-N-2-3-4-5-6
- Final Drive Chain
Performance
- Front Suspension 880 mm Adjustable
- Rear Suspension 450 mm Adjustable
- Tires F/21" R/18"
- Front Brakes Hydraulic Brake
- Rear Brakes Hydraulic Brake
Dimensions
- Length x Width x Height 2110 x 800 x 1235 mm
- Seat Height 940 mm
- Ground Clearance 345 mm
- Wheelbase 1440 mm
- Dry Weight 113.0 kg
- Fuel Capacity 9 L

Distributor & Dealer

Contact a Sales Team Representative for More Information

Homologation

CE/ UKCA
Packing Size

1800 x 460 x 1010 mm
Quantity in 20' GP

30 Units
Quantity in 40' HQ

64 Units
