TT140 - Pit Bikes

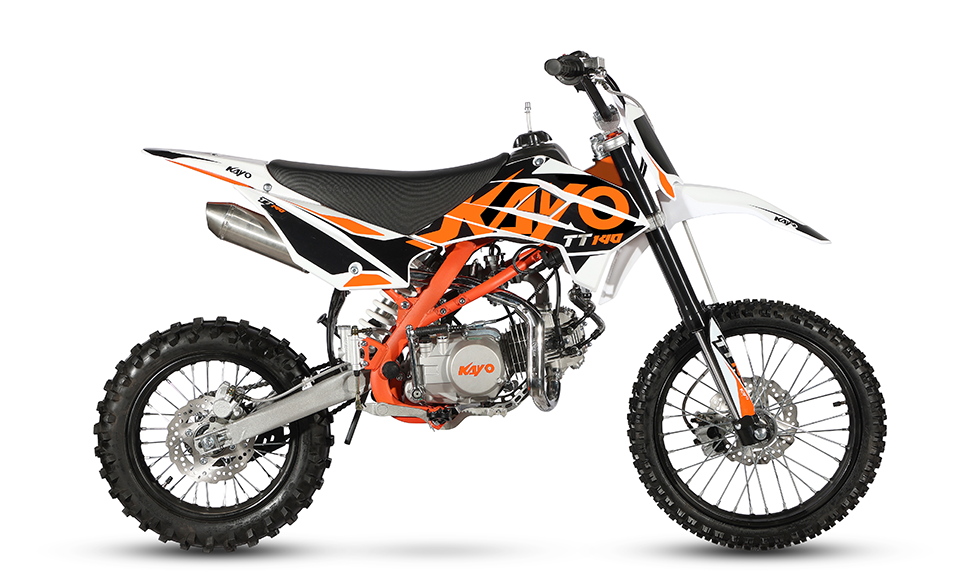

TT140 Overview

Color Options:

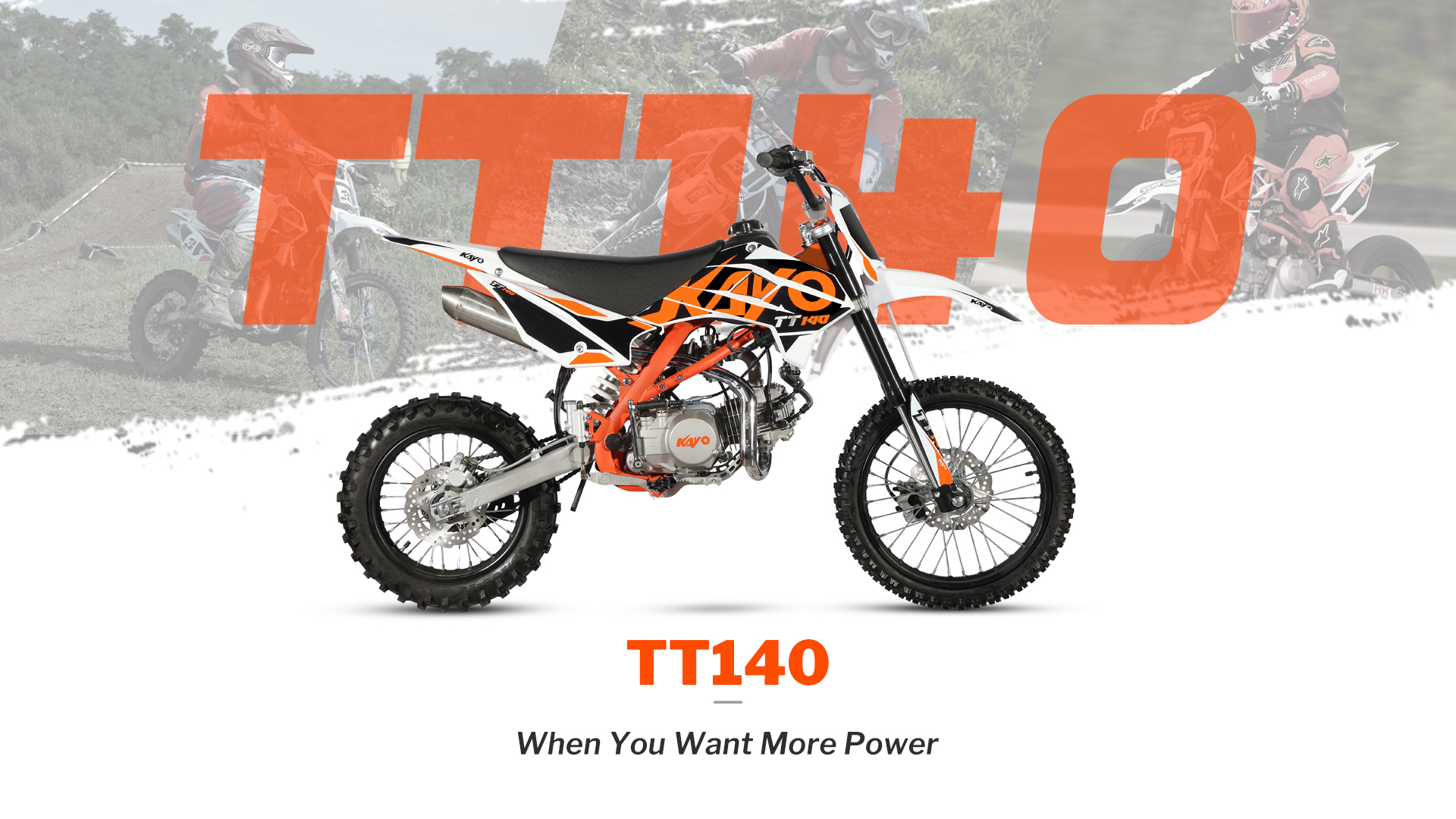

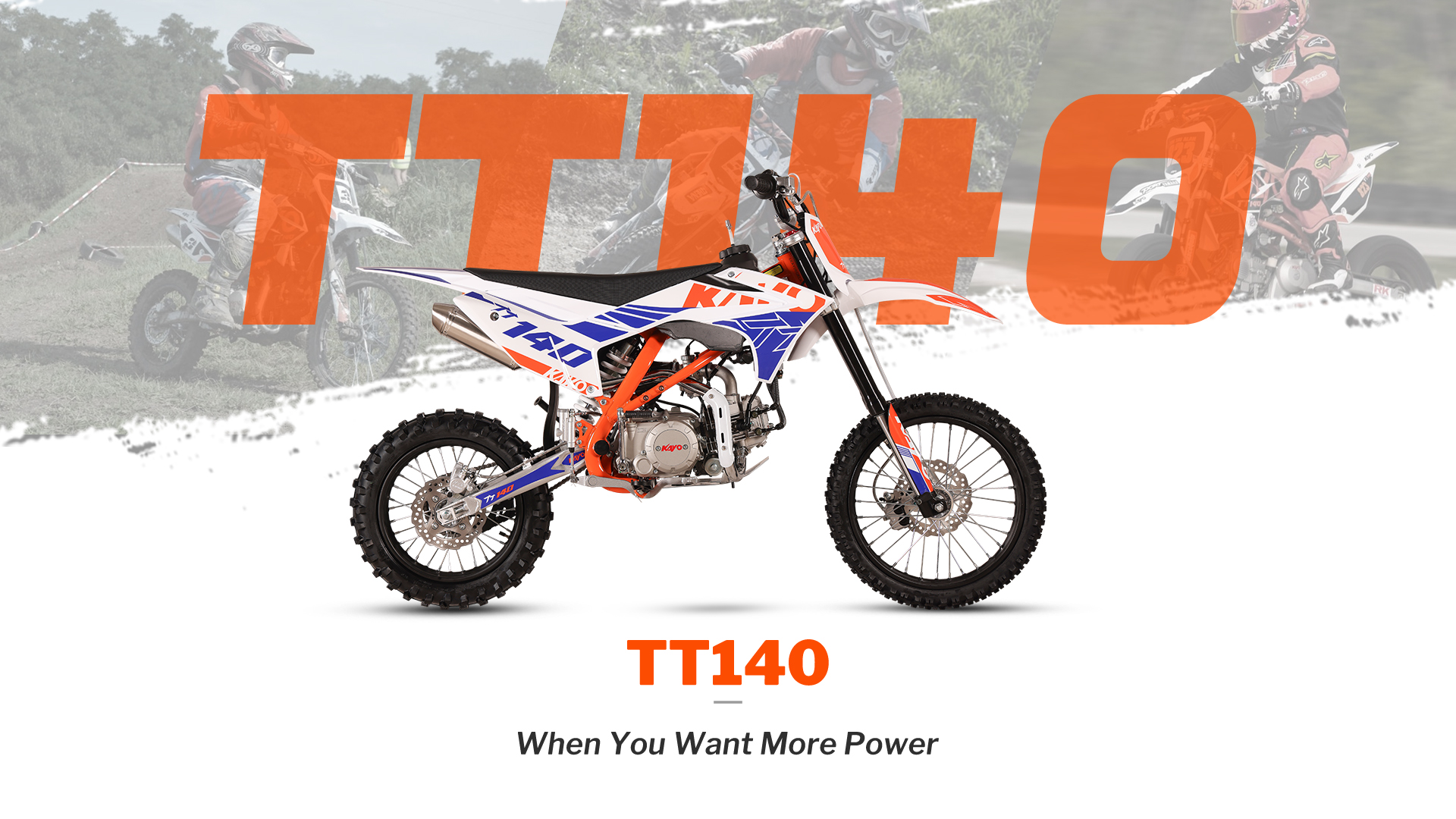

Ride your way to the front of the pack with the dynamic power of the TT140.

140.0cc 4-Stroke Oil Cooled Engine Manual Four Speed Transmission with N-1-2-3-4 Kick Start Engine 5.5L Fuel Tank

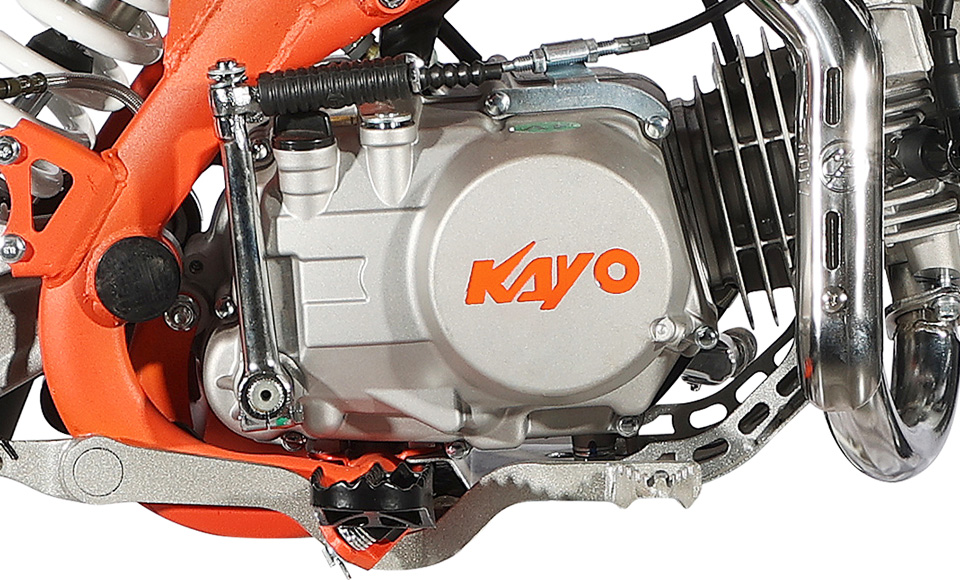

Power

Rev that Engine

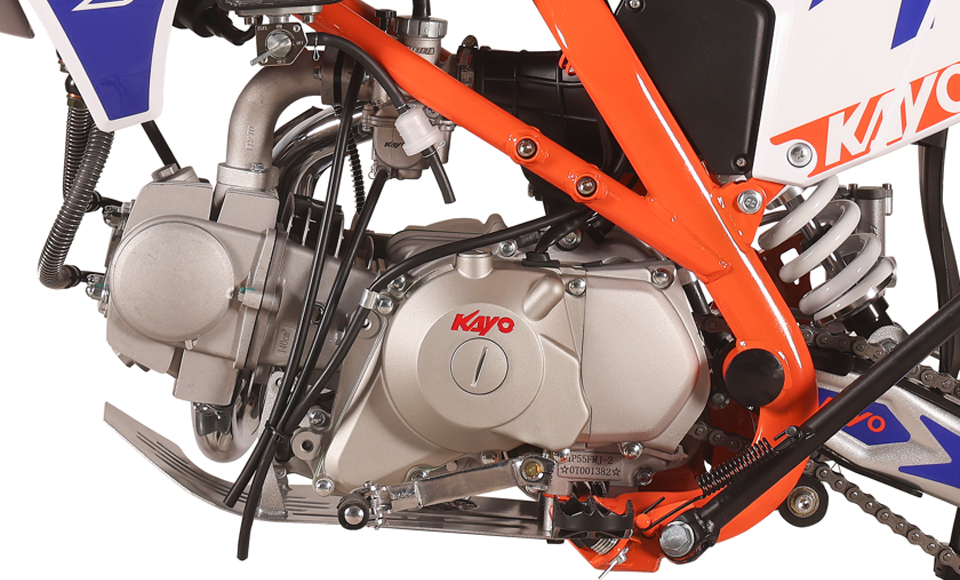

Push what you can do with an Oil-Cooled Engine. The TT140 can ride faster and longer in any environment.

Ride with full velocity control with the Manual Four Speed Transmission.

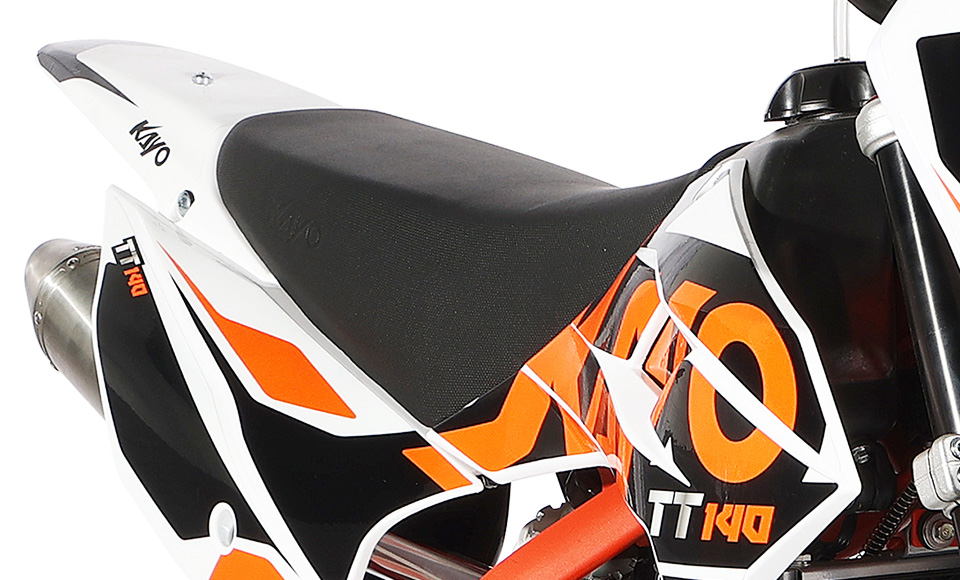

Design

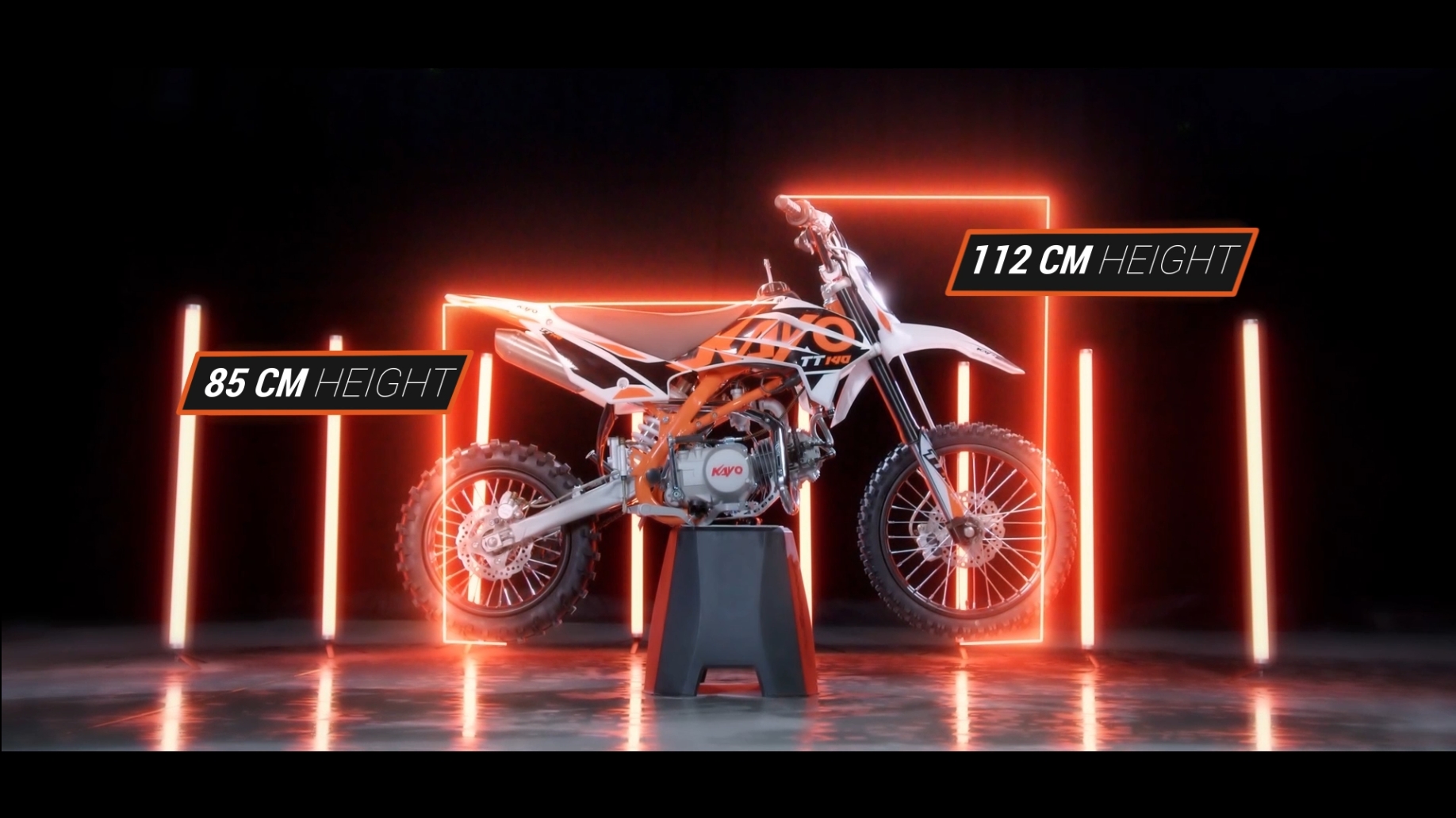

Nimble Size

Built with the same frame as TT125 and TT160, this durable engine and manual clutch pushes the limits for an exhilarating experience. We recommend this pit bike for riders with some experience.

Performance

Precise Control

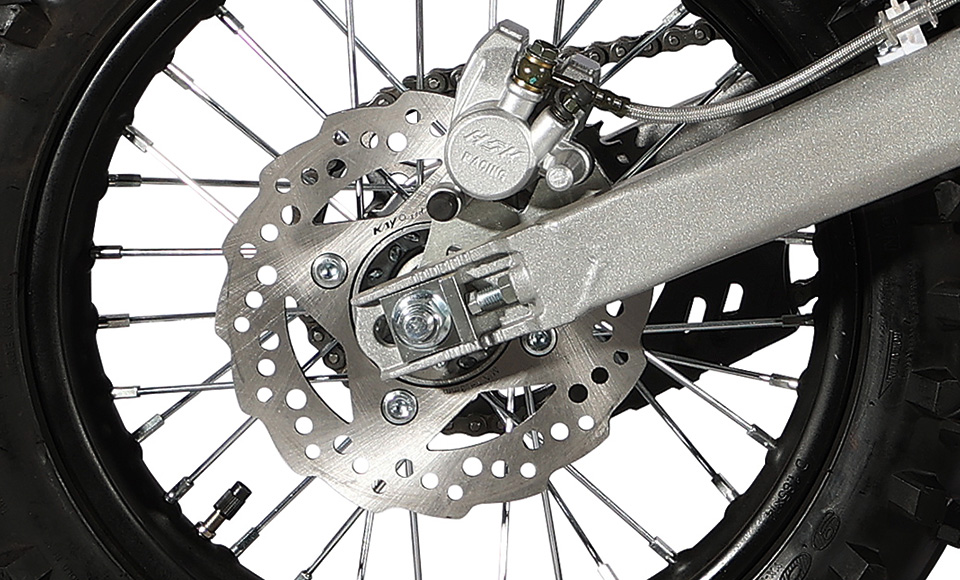

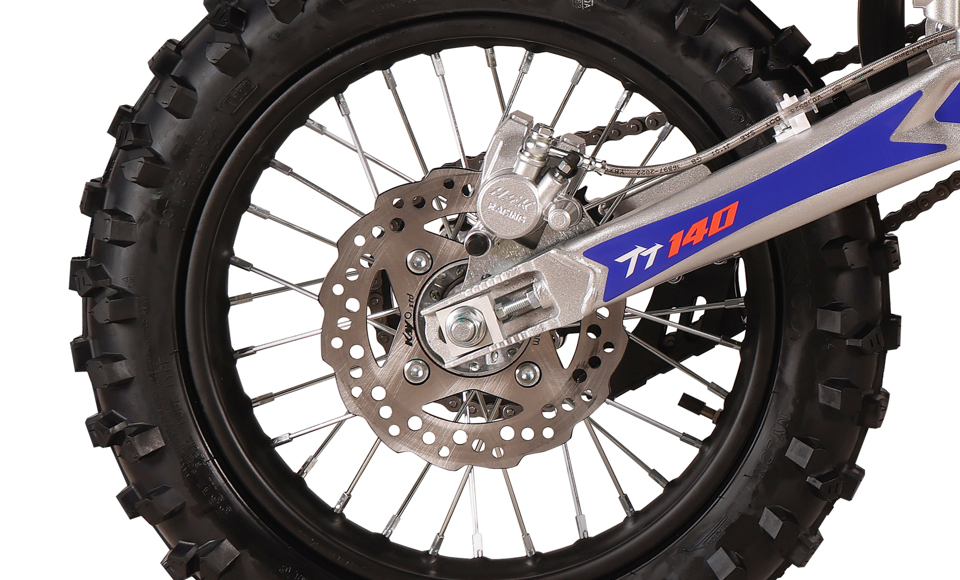

Land hard and stop sharp with an inverted front fork and Calibrated Hydraulic Braking System.

Be ready to glide over any terrain with the TT140's sturdy off-road ready suspension.

Power
- Engine 4-Stroke, SOHC, Oil Cooled
- Displacement 137.2 cc
- Bore x Stroke 55.0 x 57.8 mm
- Compression Ratio 9.3:1
- Fuel System Carburetor
- Maximum Power 8.0 kw @ 7500 rpm
- Maximum Torque 11 N⋅ m @ 5500 rpm
- Ignition CDI
- Starting Method Kick Start, Electric
- Transmission Manual Four Speed with N-1-2-3-4
- Final Drive Chain
Performance
- Front Suspension 800 mm Non-Adjustable
- Rear Suspension 360 mm Non-Adjustable
- Tires F/17" R/14"（F/19" R/16"）
- Front Brakes Hydraulic Brake
- Rear Brakes Hydraulic Brake
Dimensions
- Length x Width x Height 1845 x 770 x 1140 mm （1880 x 770 x 1165 mm）
- Seat Height 875 mm（900mm）
- Ground Clearance 300 mm（330mm）
- Wheelbase 1270 mm（1275mm）
- Dry Weight 79.0 kg（80Kg）
- Fuel Capacity 5.5 L

Distributor & Dealer

Contact a Sales Team Representative for More Information

Homologation

EPA 49 States/ CE
Packing Size

1660 x 380 x 810mm （1660 x 460 x 810mm）
Quantity in 20' GP

38 Units
Quantity in 40' HQ

126 Units
