AU150-CVT Overview

Color Options:

Explore the task and get the most out of your ATV with the AU150 CVT.

 149.6cc 4-Stroke Air Cooled Engine  CVT with R-N-F  Adjustable Rear Suspension  5.5L Fuel Tank

Power

Optimized Ability

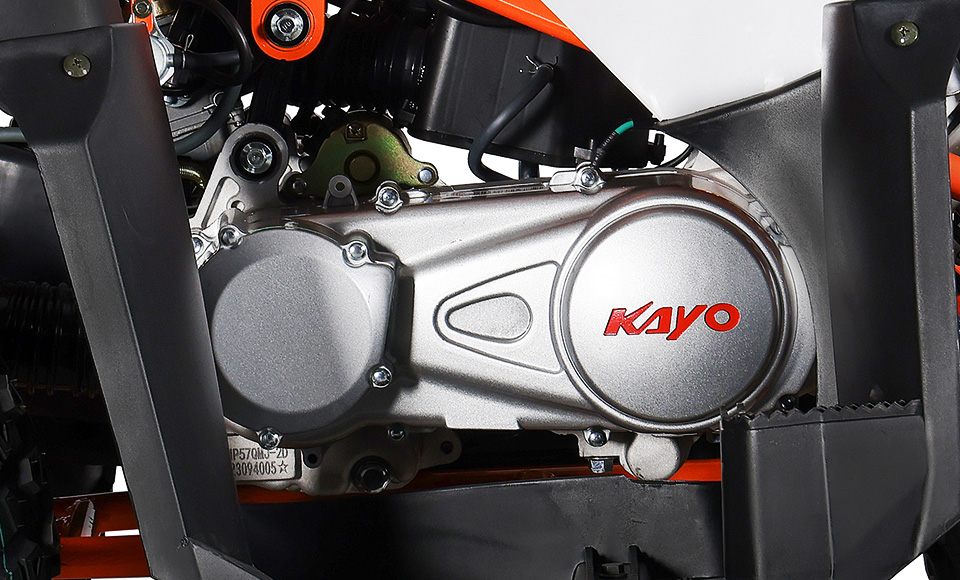

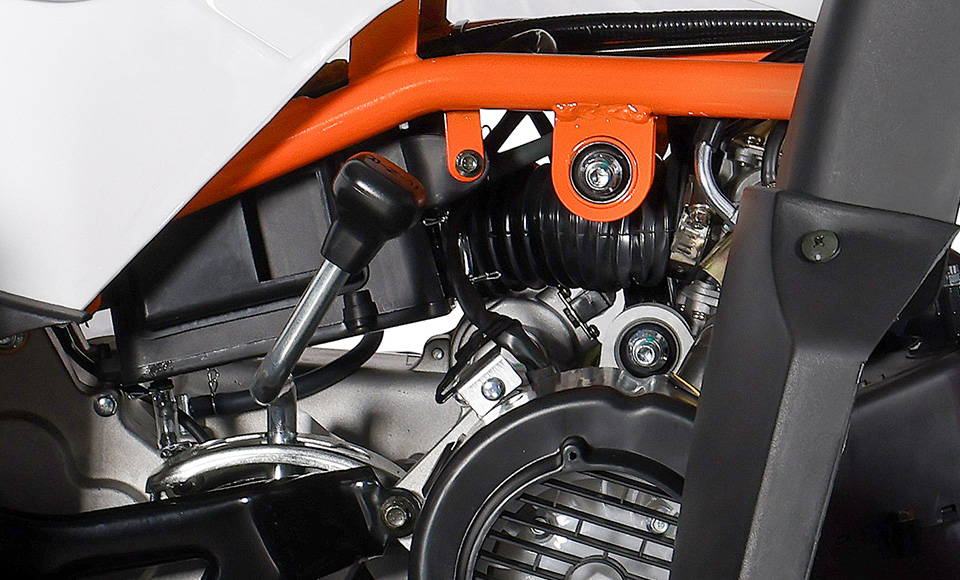

More than just the simple-to-use Continuously Variable Transmission (R-N-F), the balanced shaft 4-Stroke Engine reduces vibration for a smoother ride.

Performance

Strength that Steps Up

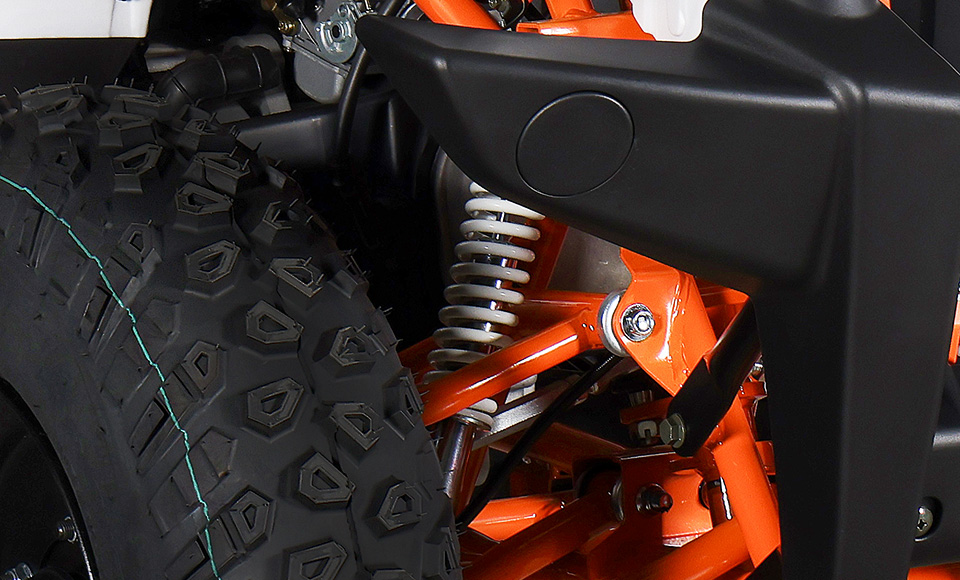

The durable steel frame and rugged double-A front suspension are ready to endure whatever challenge you are ready to take on.

Off-Road Ability

Dynamic Performance

Never lose control with the high traction off-road tires and highly responsive Hydraulic Disc Braking System, which is ready to change velocity when you are.

Take care of your daily tasks with the AU150 CVT.

  • Power
    • Engine 4-Stroke, SOHC, Air Cooled
    • Displacement 149.6 cc
    • Bore x Stroke 57.4 x 57.8 mm
    • Compression Ratio 10.3:1
    • Fuel System Carburetor
    • Maximum Power 5.8 kw @ 7500 rpm
    • Maximum Torque 8.3 N⋅ m @ 6000 rpm
    • Ignition CDI
    • Starting Method Electric
    • Transmission CVT with R-N-F
    • Final Drive 2WD, Chain
  • Performance
    • Front Suspension 270 mm Non-Adjustable
    • Rear Suspension 280 mm Adjustable
    • Tires F/10" R/9"
    • Front Brakes Hydraulic Disc Brake
    • Rear Brakes Hydraulic Disc Brake
  • Dimensions
    • Length x Width x Height 1690 x 975 x 1010 mm
    • Seat Height 740 mm
    • Ground Clearance 140 mm
    • Wheelbase 1080 mm
    • Dry Weight 155.0 kg
    • Fuel Capacity 5.5 L

Distributor & Dealer

Contact a Sales Team Representative for More Information

  • Homologation

    CE

  • Packing Size

    1480 x 1150 x 825 mm

  • Quantity in 20' GP

    14 Units

  • Quantity in 40' HQ

    48 Units
