TS70 Overview

Color Options:

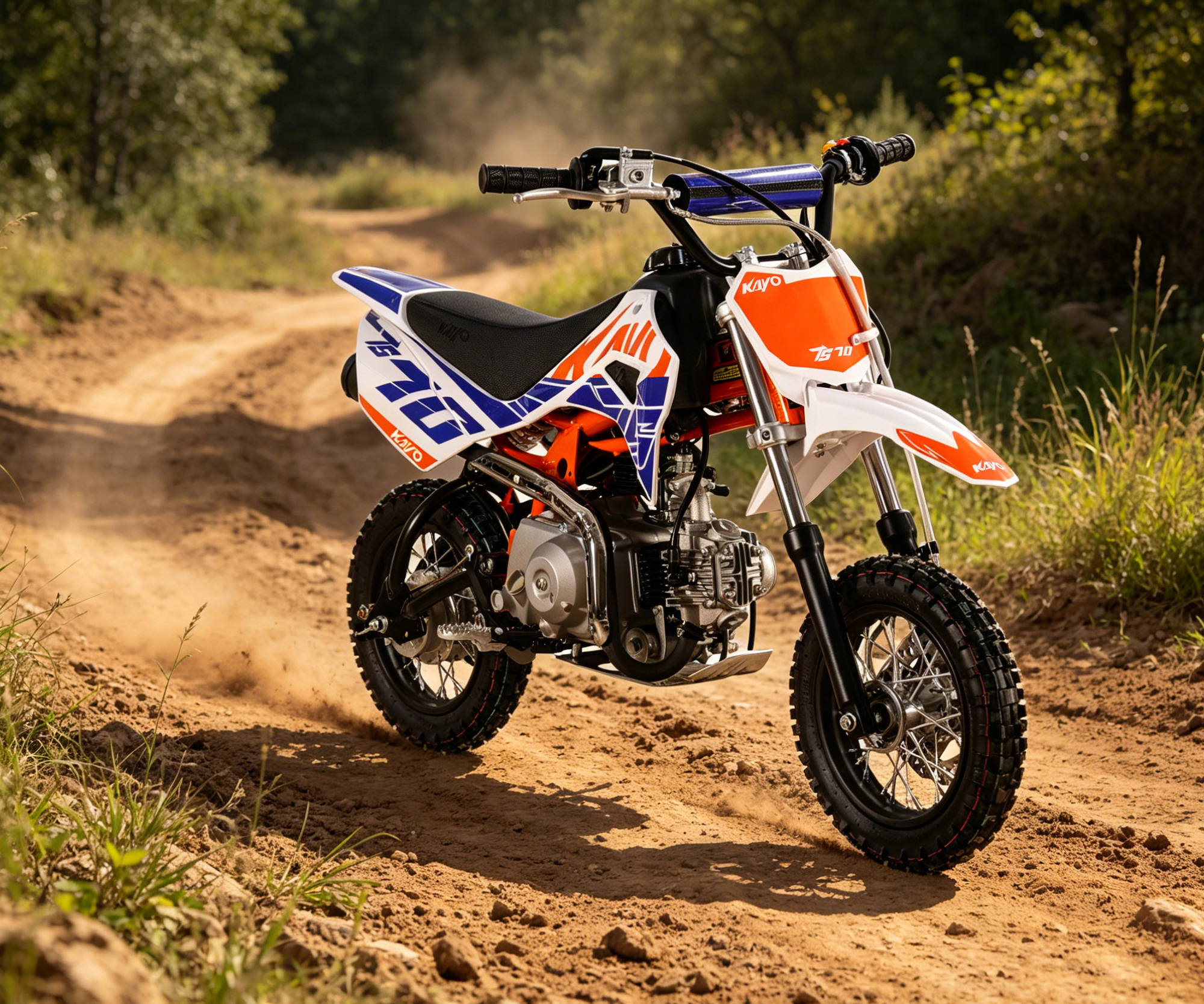

A little step up in power makes a big difference for your little thrill seeker. See what the TS70 can do.

 72.0cc 4-Stroke Engine  Fuly Automatic Transmission  Electric Start Engine  Throttle Twist Speed Limiter  Chain Safety Guard

Performance

Managed Power

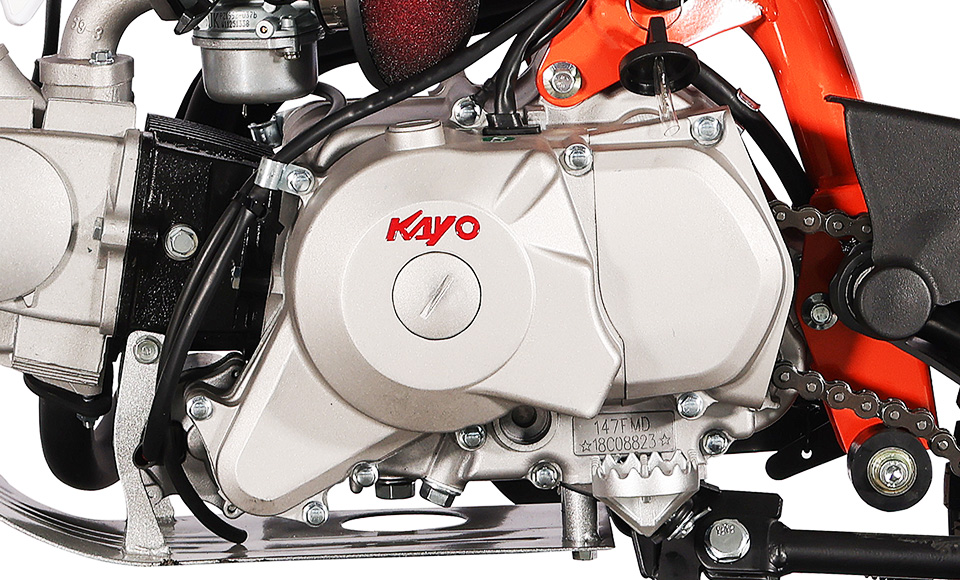

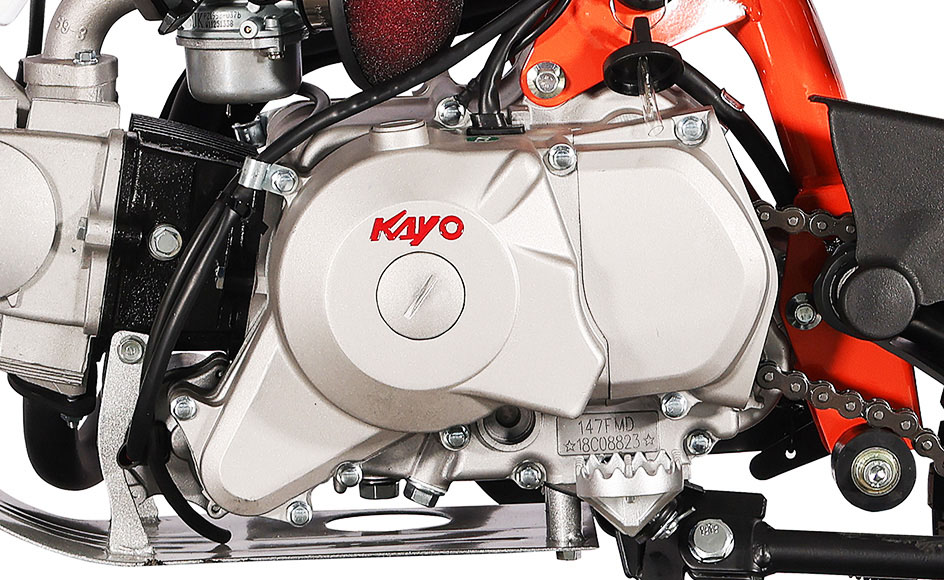

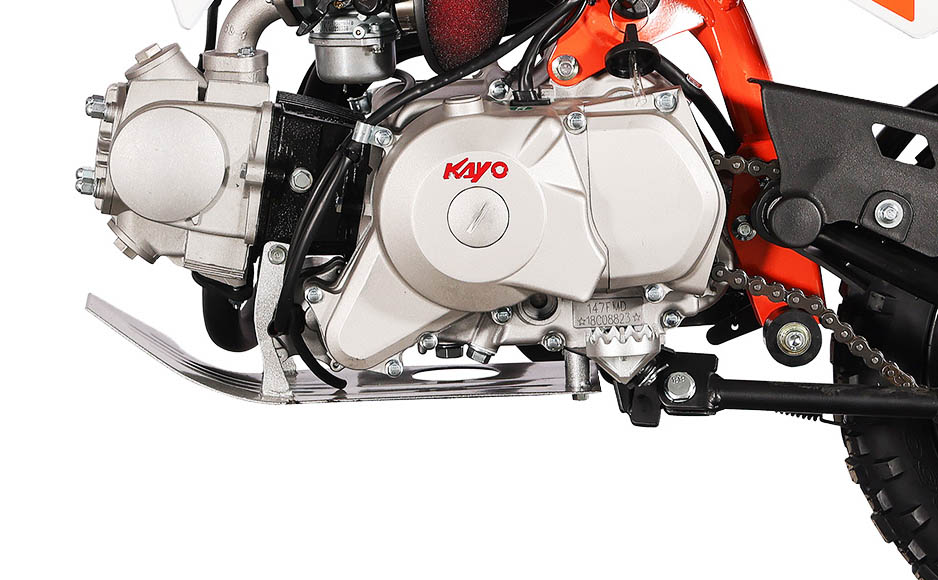

The TS70's 72.0cc Engine offers a fun riding experience and with a front hydraulic brake and a rear drum brake. We got you covered to slow things down in any situation.

Power

Automatic Transmission

Focus on your balance and the obstacles ahead with the Automatic Clutch.

Design

Essential Protective Features

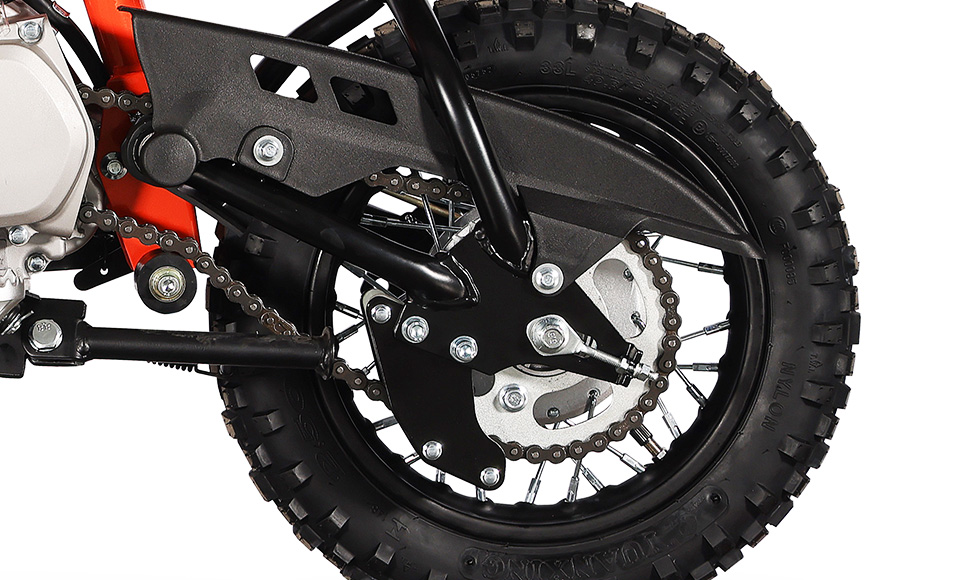

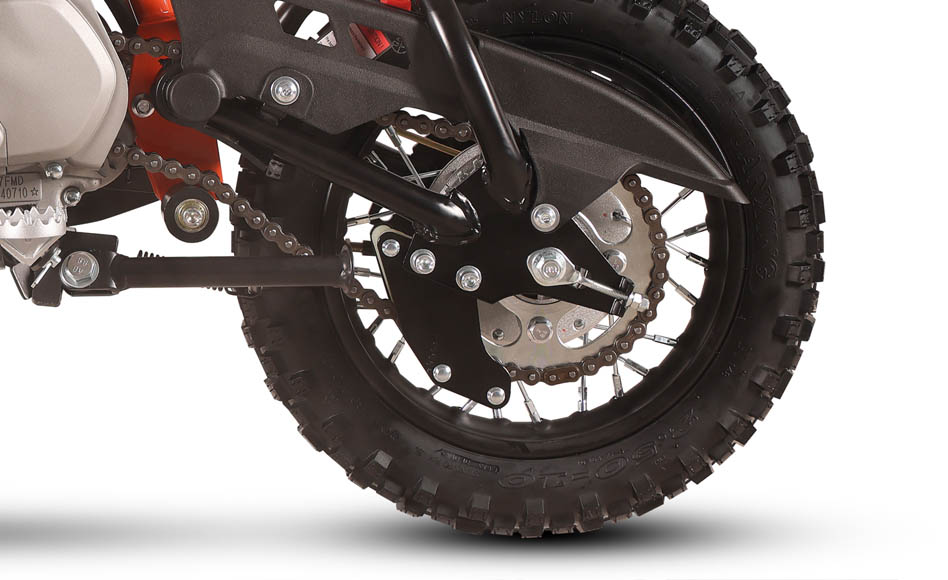

An adaptable suspension, full-wrap-around exhaust pipe heat shield, skid plate, and chain guard ensure the elements of pit bike riding don't spoil a fun time.

  • Power
    • Engine 4-Stroke, SOHC, Air Cooled
    • Displacement 72.0 cc
    • Bore x Stroke 47.0 x 41.4 mm
    • Compression Ratio 8.8:1
    • Fuel System Carburetor
    • Maximum Power 3.7 kw @ 8000 rpm
    • Maximum Torque 5.0 N⋅ m @ 6000 rpm
    • Ignition CDI
    • Starting Method Electric
    • Transmission Fully Automatic
    • Final Drive Chain
  • Performance
    • Front Suspension 540 mm Non-Adjustable
    • Rear Suspension 255 mm Non-Adjustable
    • Tires F/10" R/10"
    • Front Brakes Hydraulic Brake
    • Rear Brakes Drum Brake
  • Dimensions
    • Length x Width x Height 1350 x 670 x 870 mm
    • Seat Height 615 mm
    • Ground Clearance 165 mm
    • Wheelbase 950 mm
    • Dry Weight 52.0 kg
    • Fuel Capacity 3.5 L

Distributor & Dealer

Contact a Sales Team Representative for More Information

  • Homologation

    CE

  • Packing Size

    1220 x 380 x 640 mm

  • Quantity in 20' GP

    90 Units

  • Quantity in 40' HQ

    224 Units
