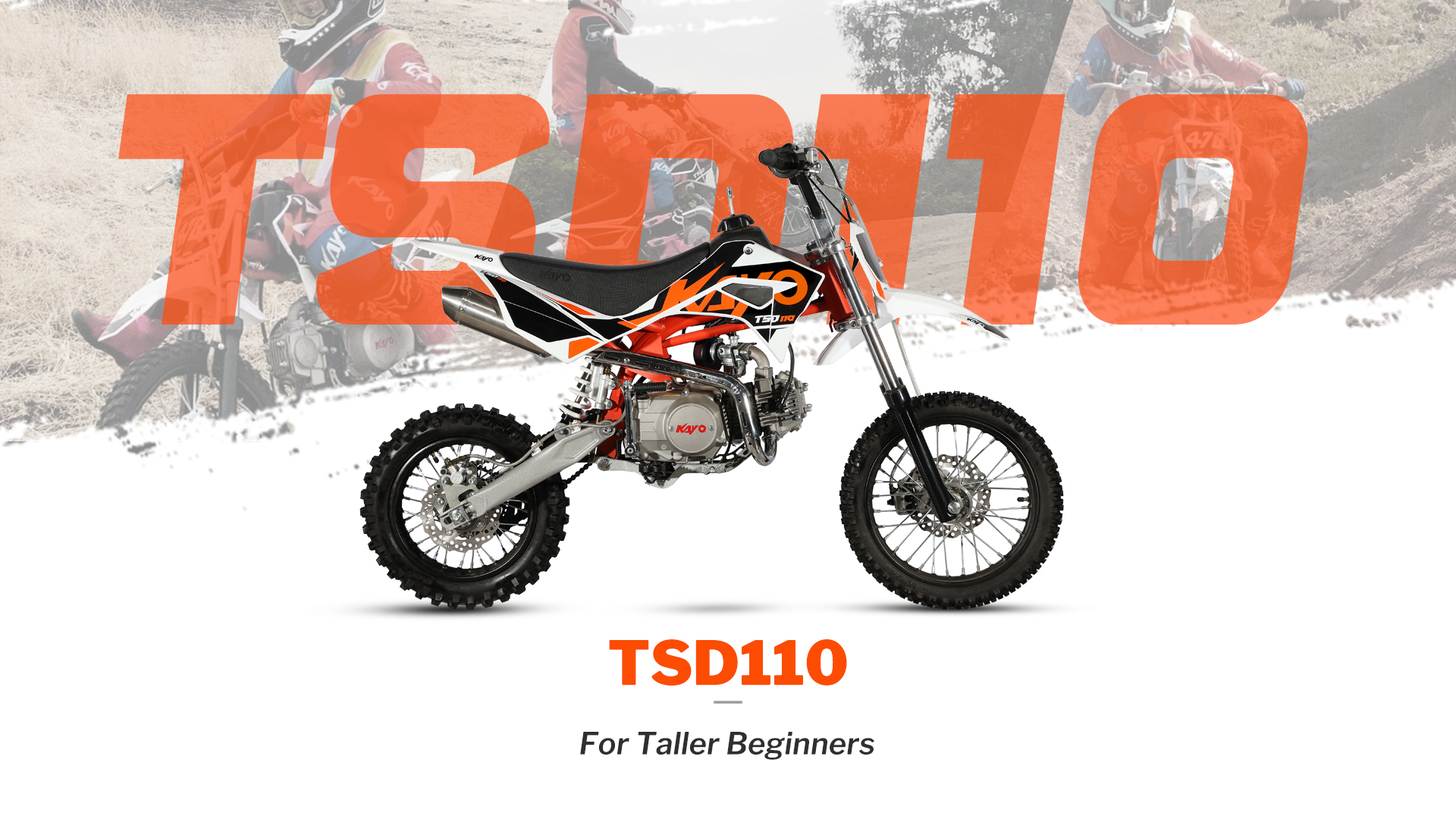

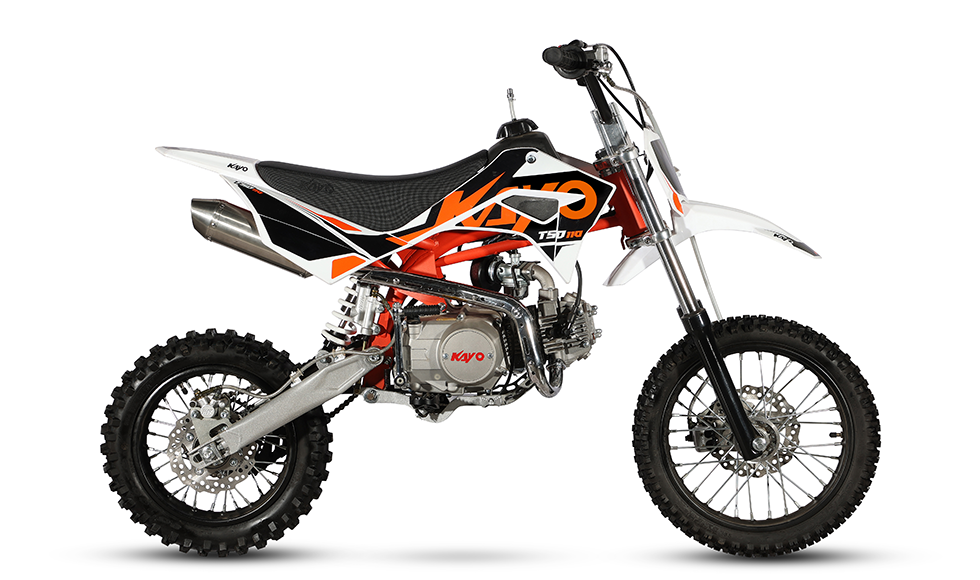

TSD110 - Pit Bikes

TSD110 Overview

Color Options:

We made this bike for those who hit their growth spurt a little early. Ride a little taller with the TSD110.

106.7cc 4-Stroke Engine Semi-Automatic Four Speed with N-1-2-3-4 Kick Start Engine 3.5L Fuel Tank

Performance

High Clearance

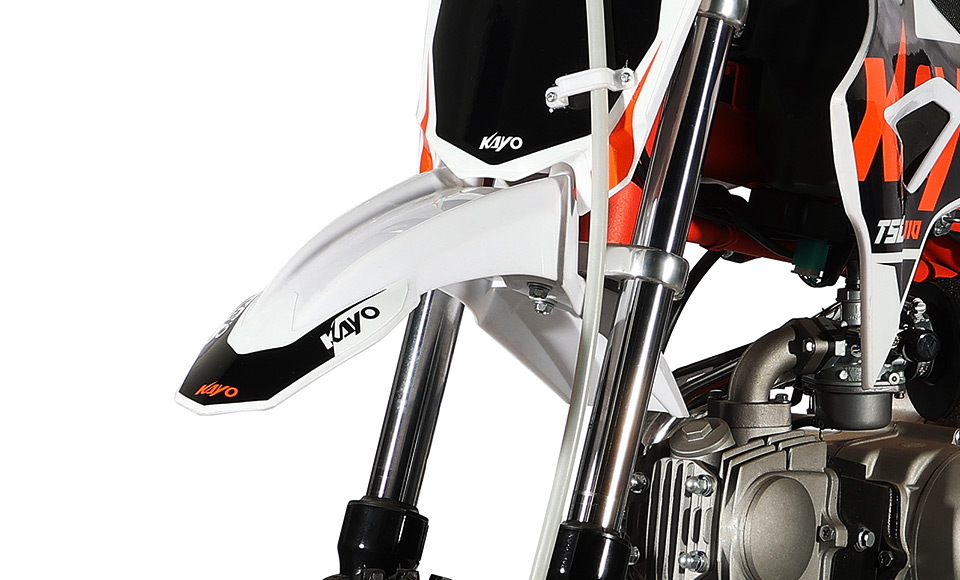

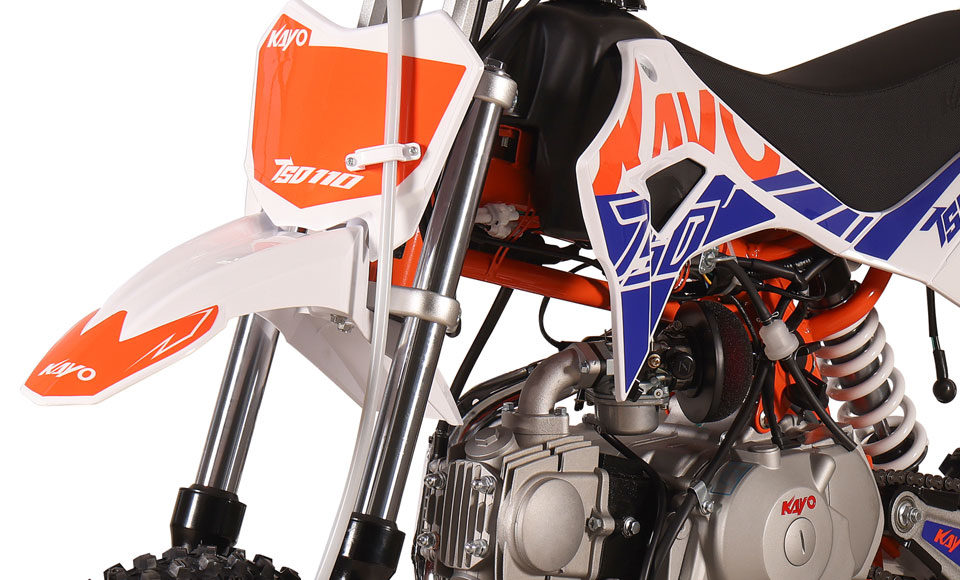

Take advantage of the manageable power of the TSD110 with a more vertical suspension and 740mm seat height.

Power

Learn Big Bike Skills

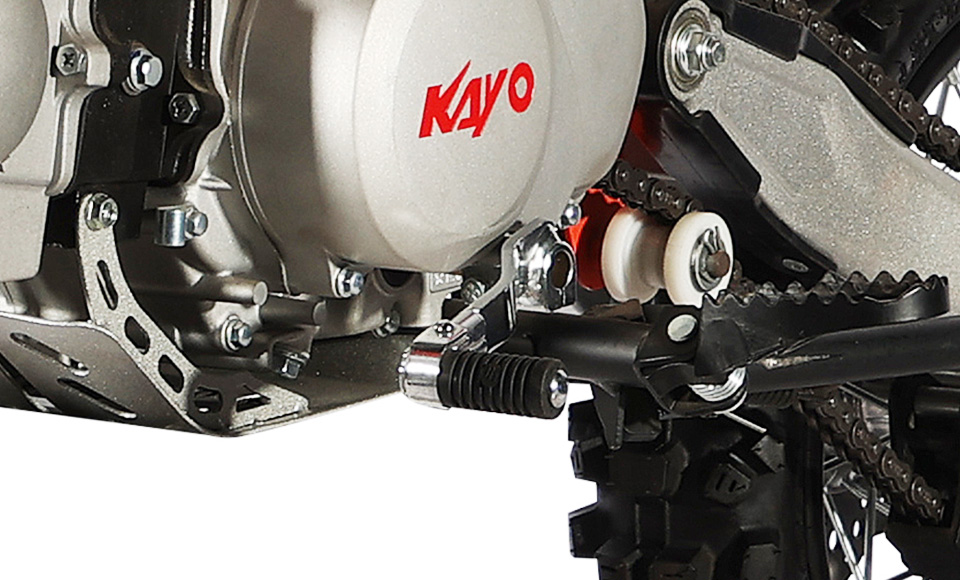

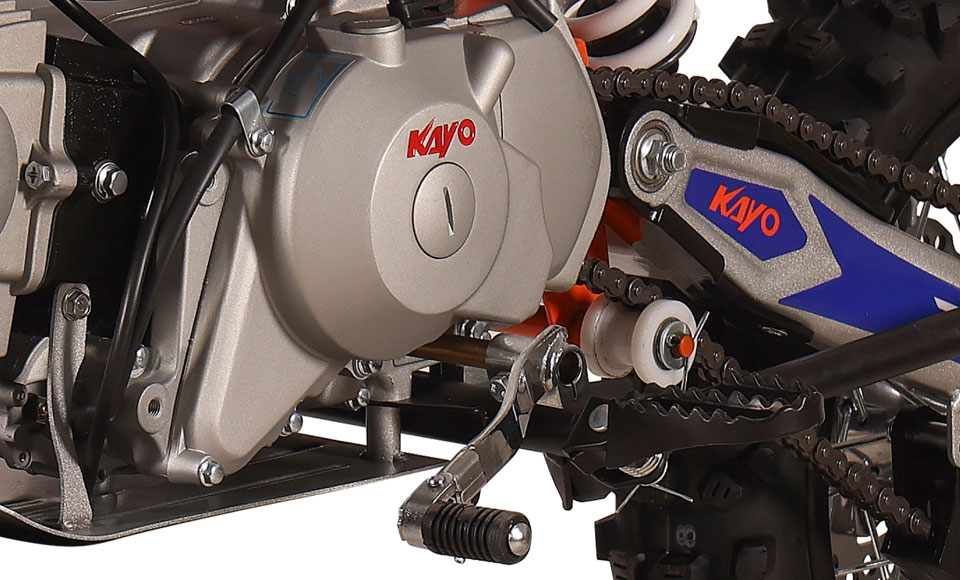

The foot-activated Four Speed Semi-Automatic transmission, and Kick Starter give rides a taste of what it feels like to ride like a pro.

Off-Road Ability

Ride Harder

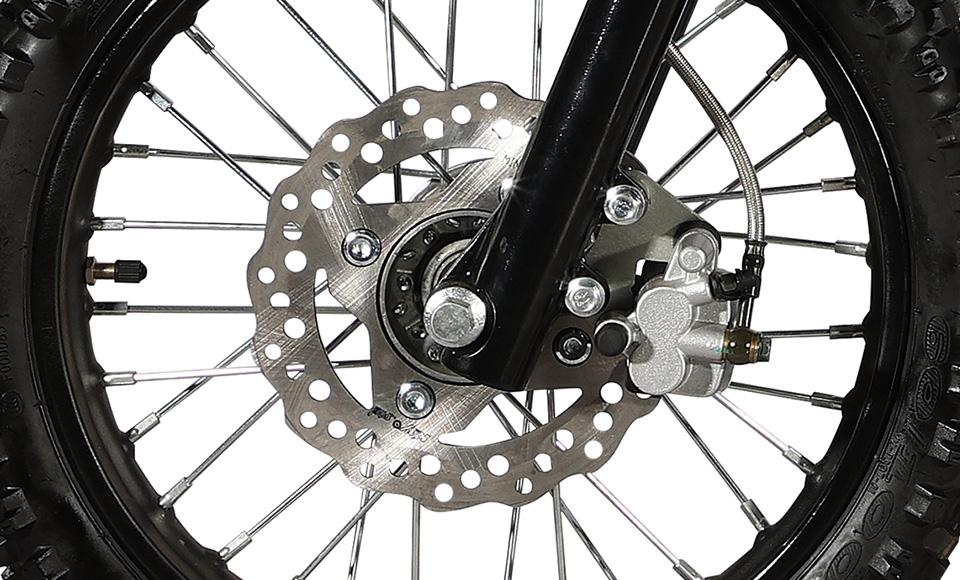

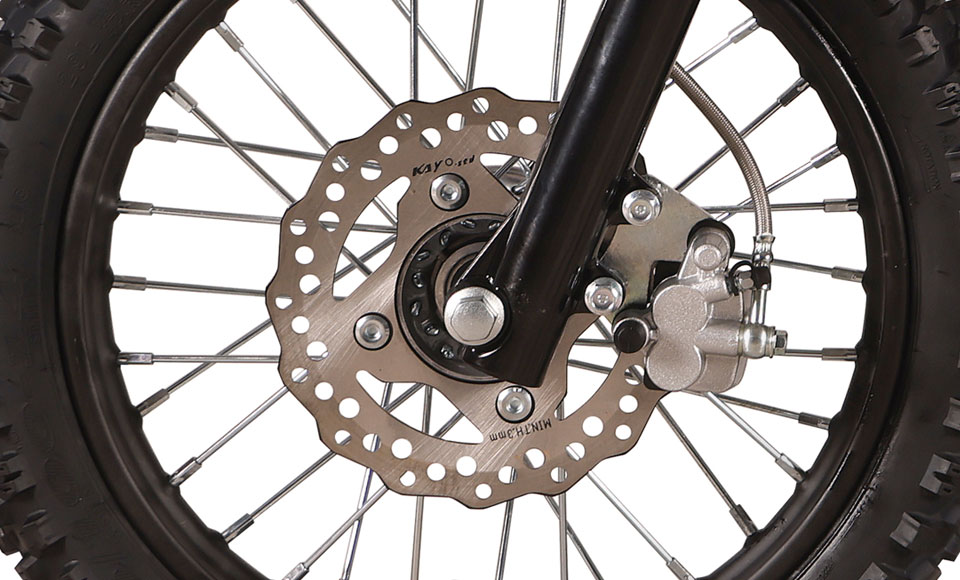

The lightweight design, Hydraulic Disc Brakes, and strong suspension let young riders experiment with what they can do on the trail without compromising control.

Power
- Engine 4-Stroke, SOHC, Air Cooled
- Displacement 106.7 cc
- Bore x Stroke 52.4 x 49.5 mm
- Compression Ratio 9.0:1
- Fuel System Carburetor
- Maximum Power 5.1 kw @ 8000 rpm
- Maximum Torque 7.2 N⋅ m @ 5000 rpm
- Ignition CDI
- Starting Method Kick Start
- Transmission Semi-Automatic Four Speed with N-1-2-3-4
- Final Drive Chain
Performance
- Front Suspension 630 mm Non-Adjustable
- Rear Suspension 270 mm Non-Adjustable
- Tires F/14" R/12"
- Front Brakes Hydraulic Brake
- Rear Brakes Hydraulic Brake
Dimensions
- Length x Width x Height 1560 x 750 x 1020 mm
- Seat Height 740 mm
- Ground Clearance 275 mm
- Wheelbase 1085 mm
- Dry Weight 60.0 kg
- Fuel Capacity 3.5 L

Distributor & Dealer

Contact a Sales Team Representative for More Information

Homologation

EPA 49 States/ CE
Packing Size

1430 x 380 x 640mm
Quantity in 20' GP

84 Units
Quantity in 40' HQ

196 Units
